Front
Door Lock Actuator
| 1. |
Remove the front door trim.
(Refer to the BD group - "Front
door") |
| 2. |
Remove the front door module.
(Refer to the BD group - "Front
door") |
| 3. |

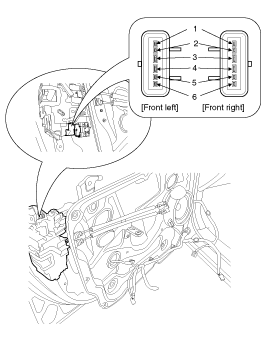

Disconnect the connectors (6P) from the
actuator.
|
| 4. |
Check actuator operation by connecting power
and ground according to the table. To prevent damage to the
actuator, apply battery voltage only momentarily.
|
Rear
Door Lock Actuator
| 1. |
Remove the rear door trim.
(Refer to the BD group - "Rear
door") |
| 2. |
Remove the rear door module.
(Refer to the BD group - "Rear
door") |
| 3. |

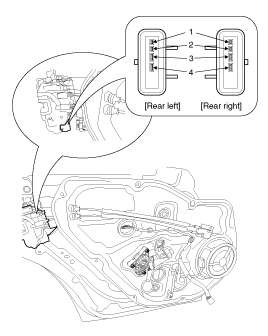

Disconnect the connectors from the
actuator.
|
| 4. |
Check actuator operation by connecting power
and ground according to the table. To prevent damage to the
actuator, apply battery voltage only momentarily.
|
Tailgate
Lock Actuator Inspection
| 1. |
Remove the tailgate trim.
(Refer to the BD group -
"Tailgate") |
| 2. |
Disconnect the 4P connector from the
actuator.
|
| 3. |
Check actuator operation by connecting power
and ground according to the table. To prevent damage to the
actuator, apply battery voltage only momentarily.
|
Front
Door Lock Switch
| 1. |
Remove the front door trim.
(Refer to the BD group - "Front
door") |
| 2. |
Remove the front door module.
(Refer to the BD group - "Front
door") |
| 3. |
Disconnect the connectors from the
actuator.
|
| 4. |
Check for continuity between the terminals
in each switch position when inserting the key into the door
according to the table.
|
Rear
Door Lock Switch
| 1. |
Remove the rear door trim.
(Refer to the BD group - "Rear
door") |
| 2. |
Remove the rear door module.
(Refer to the BD group - "Rear
door") |
| 3. |
Disconnect the connectors from the
actuator.
|
| 4. |
Check for continuity between the terminals
in each switch position according to the table.
|
Tailgate
Switch
| 1. |
Remove the tailgate trim.
(Refer to the BD group -
"Tailgate") |
| 2. |
Disconnect the 4P connector from the
actuator.
|
| 3. |
Check for continuity between the terminals
in each switch position according to the table.
|
Door
Switch
Remove the door switch
and check for continuity between the terminals.
Hood
Switch
| 1. |
Remove the hood latch.
(Refer to the BD group -
"Hood") |
| 2. |
Disconnect the connector (A) from the hood
switch.
|
| 3. |
Check for continuity between the terminals
and ground according to the table.
|
Key
Warning Switch
| 1. |
Remove the crash pad lower
panel.
(Refer to the BD group - "Crash
pad") |
| 2. |
Disconnect the 6P connector from the key
warning switch.
|
| 3. |
Check for continuity between the terminals
in each position according to the table.
|
