Refer to the BE group - inspection / self
diagnosis with scan tool |
Smart
Key Switch
| -
|
Refer to the BE group - inspection / self
diagnosis with scan tool |
Antenna
| -
|
Refer to the BE group - inspection / self
diagnosis with scan tool |
Tailgate
Switch
| 1. |
Check for continuity between the
terminals.
|
| 2. |
If continuity is not specified, inspect the
switch
|

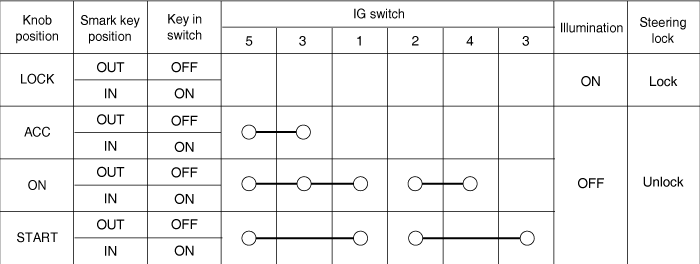

Mechatronic
Steering Lock (MSL)
| 1. |
Check for continuity between the terminals
of switch.. |
| 2. |
If continuity is not specified, inspect the
switch
|
Smart
Key Unit
| 1. |
Disconnect the negative (-) battery
terminal. |
| 2. |

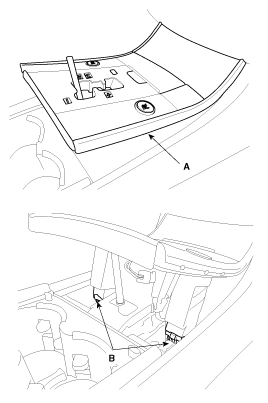

Remove the console under cover(A) and
connectors (B).
(Refer to the BD group -
"Console")
|
| 3. |
After loosening the console mounting screws,
remove the floor console assembly (A).
(Refer to the BD group -
"Console")
|
| 4. |
After loosening the smart key unit mounting
bolts (B) and connector, remove the smart key unit
(A). |
RF
Receiver
| 1. |
Disconnect the negative (-) battery
terminal. |
| 2. |
Remove the glove box.
(Refer to the BD group - "Crash
pad")
|
| 3. |

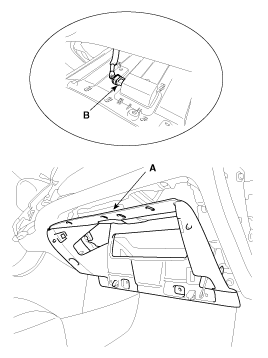

After loosening the mounting screws and
bolts, then remove the glove box housing (A).
Disconnect the connector (B).
(Refer to the BD group - "Crash
pad")
|
| 4. |
After loosening the mounting nuts (2EA),
then remove the connector.
|
Interior
1 Antenna
| 1. |
Disconnect the negative (-) battery
terminal. |
| 2. |
Remove the console under cover (A) and
connectors (B).
(Refer to the BD group -
"Console")
|
| 3. |
After loosening the console mounting screws,
remove the floor console assembly (A).
(Refer to the BD group -
"Console")
|
| 4. |
After loosening the antenna nuts(2EA) and
connector, remove the interior 1 antenna (A).
|
Interior
2 Antenna
| 1. |
Disconnect the negative (-) battery
terminal. |
| 2. |
Remove the console rear cover(A) and
connectors.
(Refer to the BD group -
"Console")
|
| 3. |
After loosening the console mounting screws,
remove the floor console assembly (A).
(Refer to the BD group -
"Console")
|
| 4. |
After loosening the antenna bolts (2EA) and
connector, remove the interior 2 antenna (A).
|
Interior
3 Antenna
| 1. |
Disconnect the negative (-) battery
terminal. |
| 2. |

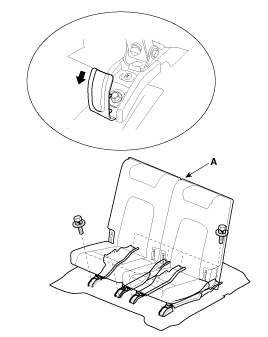

After loosening the mounting bolts, then
remove the third seat assembly(A).
(Refer to the BD group - "Rear
seat")
|
| 3. |
After loosening the antenna nuts (2EA) and
connector (A), remove the interior 3 antenna (B).
|
Exterior
Bumper Antenna
| 1. |
Disconnect the negative (-) battery
terminal. |
| 2. |
Remove the rear bumper.
(Refer to the BD group - "Rear
bumper") |
| 3. |
After loosening the antenna connector (A) on
the right side of rear bumper and nuts (2EA), remove the interior
exterior bumper antenna (B).
|
Buzzer
| 1. |
Disconnect the negative (-) battery
terminal. |
| 2. |
Remove the buzzer (A) in the clip hole after
disconnecting the connector on the side rail panel.
|
Door
Outside Handle
| 1. |
Disconnect the negative (-) battery
terminal. |
| 2. |
Disconnect the connector after removing the
door trim.
(Refer to the BD group - "Front
door") |
| 3. |
After loosening the mounting bolt and cap
(A), then remove the key holder (B).
|
| 4. |
Remove the outside handle (A) by sliding it
rearward.
|
Tailgate
Switch
| 1. |
Disconnect the negative (-) battery
terminal. |
| 2. |
Remove the tailgate trim.
(Refer to the BD group - "Tailgate
trim") |
| 3. |

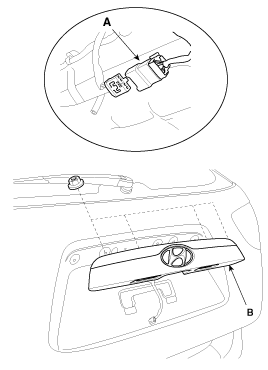

Disconnect the connector (A). After
loosening the remove tailgate garnish mounting nuts, then tailgate
garnish (B).
|
| 4. |
Remove the outside handle (A) after
loosening the outside handle mounting screws.
|
Smart
Key Unit
| 1. |
Install the smart key
unit. |
| 2. |
Install the smart key unit mounting bolt and
connector. |
| 3. |
Install the console
assembly. |
| 4. |
Install the console under cover after
connecting the connector. |
| 5. |
Install the negative (-) battery terminal
and check the smart key system. |
RF
Receiver
| 1. |
Install the RF
receiver. |
| 2. |
Install the glove box
housing. |
| 3. |
Install the glove
box. |
| 4. |
Install the negative (-) battery terminal
and check the smart key system. |
Interior
1 Antenna
| 1. |
Install the interior 1
antenna. |
| 2. |
Install the console
assembly. |
| 3. |
Install the console under cover after
connecting the connector. |
| 4. |
Install the negative (-) battery terminal
and check the smart key system. |
Interior
2 Antenna
| 1. |
Install the interior 2
antenna. |
| 2. |
Install the connector mounting
bracket.. |
| 3. |
Install the console
assembly. |
| 4. |
Install the console rear cover after
connecting the connector. |
| 5. |
Install the negative (-) battery terminal
and check the smart key system. |
Interior
3 Antenna
| 1. |
Install the interior 3
antenna. |
| 2. |
Install the connector mounting
bracket.. |
| 3. |
Install the third seat
assembly. |
| 4. |
Install the negative (-) battery terminal
and check the smart key system. |
Exterior
Bumper Antenna
| 1. |
Install the Exterior bumper
antenna. |
| 2. |
Install the rear
bumper. |
| 3. |
Install the negative (-) battery terminal
and check the smart key system. |
Buzzer
| 2. |
Install the negative (-) battery terminal
and check the smart key system. |
Door
Outside Handle
| 1. |
Install the outside
handle. |
| 2. |
Install the door
trim.. |
| 3. |
Install the negative (-) battery terminal
and check the smart key system. |
Tailgate
Switch
| 1. |
Install the tailgate
switch. |
| 2. |
Install the tailgate
garnish. |
| 3. |
Install the tailgate
trim. |
| 4. |
Install the negative (-) battery terminal
and check the smart key
system. |
