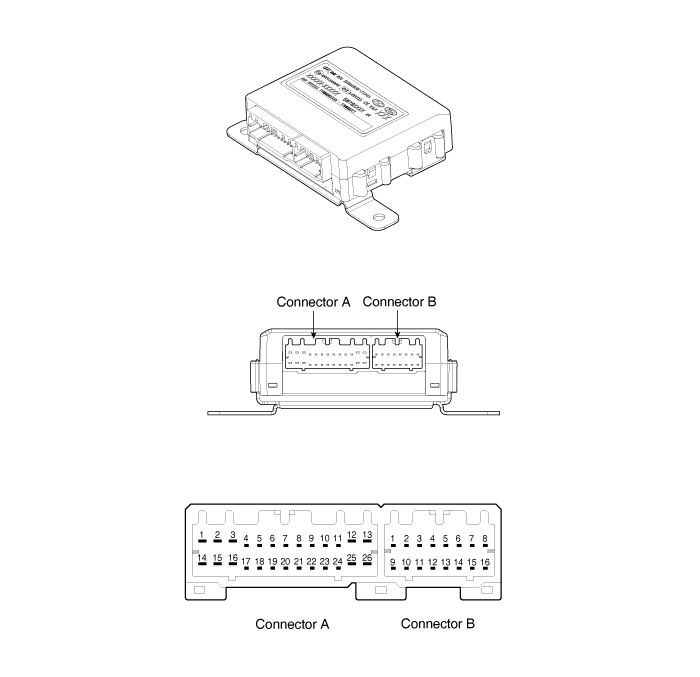

Connector Pin Information
NO
|
Connector
A (26 PIN)
|
NO
|
Connector B (16
PIN)
|
1
|
BAT. Voltage
|
17
|
KEY OUT indicator
|
1
|
Interior2 Antenna2
|
2
|
IMMO indicator
|
18
|
-
|
2
|
Interior1 Antenna2
|
3
|
Ground 1
|
19
|
Push knob
|
3
|
-
|
4
|
-
|
20
|
Front-right door Lock/Unlock
|
4
|
-
|
5
|
Tail gate
|
21
|
-
|
5
|
Interior3 Antenna1
|
6
|
Front-left door Lock/Unlock
|
22
|
DIAGNOSIS
|
6
|
Tailgate Antenna1
|
7
|
Exterior
|
23
|
KEY IN
|
7
|
Front-right door Antenna1
|
8
|
ALT 'L
|
24
|
-
|
8
|
Front-left door Antenna1
|
9
|
ACC
|
25
|
EMS communication
|
9
|
Interior2 Antenna1
|
10
|
CAN HIGH
|
26
|
-
|
10
|
Interior1 Antenna1
|
11
|
CAN LOW
|
|
|
11
|
-
|
12
|
MSL communication
|
12
|
-
|
13
|
RF communication
|
13
|
Interior3 Antenna2
|
14
|
IGN1
|
14
|
Tailgate Antenna2
|
15
|
P position
|
15
|
Front-right door Antenna2
|
16
|
Ground 2
|
16
|
Front-left door
Antenna2
|
