Head
Lamp Aiming Instructions
The head lamps should
be aimed with the proper beam-setting equipment, and in accordance with
the equipment manufacturer's instructions.
|
If there are any regulations pertinent to
the aiming of head lamps in the area where the vehicle is to be
used, adjust so as to meet those
requirements. |
Alternately turn the
adjusting gear to adjust the head lamp aiming. If beam-setting equipment
is not available, proceed as follows :
| 1. |
Inflate the tires to the specified pressure
and remove any loads from the vehicle except the driver, spare tire,
and tools. |
| 2. |
The vehicle should be placed on a flat
floor. |
| 3. |
Draw vertical lines (Vertical lines passing
through respective head lamp centers) and a horizontal line
(Horizontal line passing through center of head lamps) on the
screen. |
| 4. |
With the head lamp and battery in normal
condition, aim the head lamps so the brightest portion falls on the
vertical lines.
Make vertical adjustments to the lower beam
using the adjusting wheel.
|
Front
Fog Lamp Aiming
The front fog lamps
should be aimed as the same manner of the head lamps aiming.
With the front fog
lamps and battery normal condition, aim the front fog lamps by turning the
adjusting gear (A).
Head
Lamp And Fog Lamp Aiming Point
| 1. |
Turn the low beam on with driver seated in
the vehicle.
In case of using a head light aim test
machine, the Hot-point should be projected within the specified
point in the illustration.
In case of using a screen, the cut-off line
should be projected in allowable ranage. (shaded
region)
In case of equipping with the manual
leveling device, set the leveling device switch on the "O"
position.
* In case of high beam, head lamp do not
need aiming with proper beam-setting
equipment. |

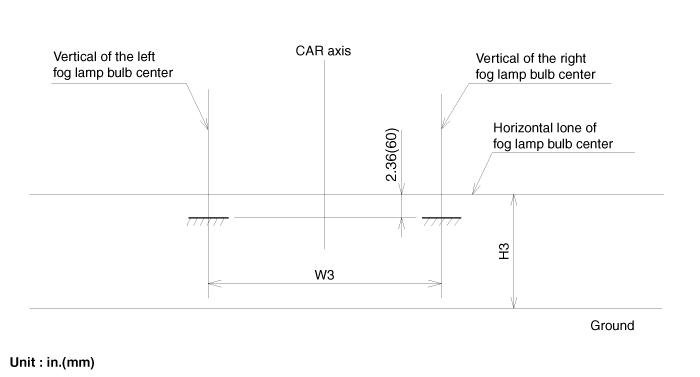

| 2. |
Turn the front fog lamp on with driver
seated in the vehicle.
The cut-off line should be projected in the
allowable range (shaded region)
|
| 1. |
Disconnect the negative (-) battery
terminal. |
| 2. |
Loosen the mounting bolts and a nut of head
lamp. Remove the head lamp assembly (A) after disconnecting the lamp
connectors.
|
| 3. |
Remove the head lamp bulb after removing the
bulb caps (A).
|
| 1. |
Install the head lamp
bulbs. |
| 2. |
Reassemble the head lamp bulb
caps. |
| 3. |
Reassemble the head assembly after
connecting the lamp
connector. |
