NO
|

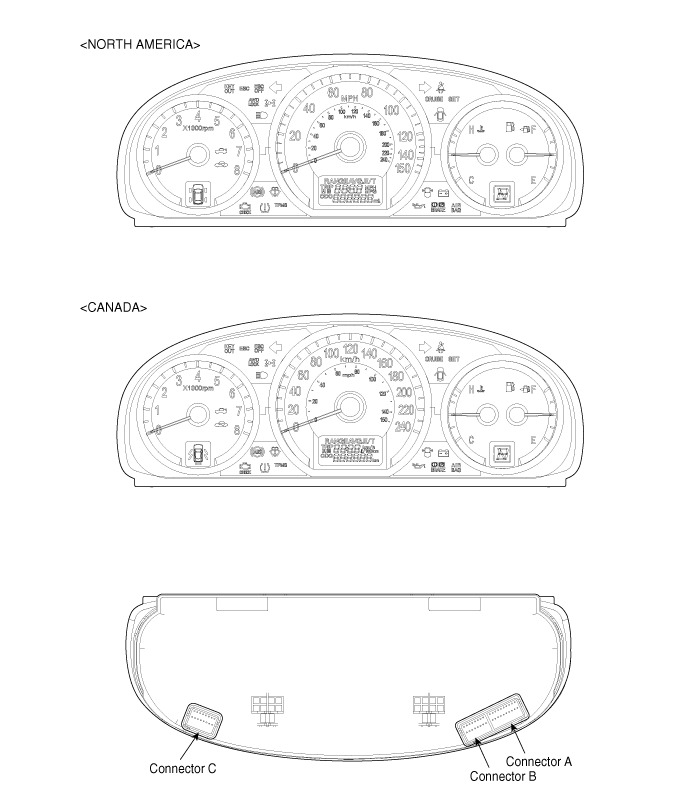

CONNECTOR A
|
CONNECTOR B
|
CONNECTOR C
|
1
|
PARKING BRAKE
|
TPMS-DOOR(FRONT-LH)
|
FUEL LOW
|
2
|
CHECK ENGINE
|
TPMS-DOOR(FRONT-RH)
|
WASHER LOW
|
3
|
OIL PRESSURE
|
TPMS-DOOR(REAR-LH)
|
TURN SIGNAL-LH
|
4
|
AIR BAG (+)
|
TPMS-DOOR(REAT-RH)
|
HIGH BEAM(+)
|
5
|
AIR BAG (-)
|
-
|
HIGH BEAM(-)
|
6
|
-
|
LCD
|
TPMS TREAD
|
7
|
GND
|
-
|
TPMS DIAG
|
8
|
KEY OFF
|
TURN SIGNAL-RH
|
FUEL INPUT
|
9
|
-
|
SPARE 1
|
SGND
|
10
|
ILL(+)
|
CAN-HIGH
|
BATT(+)
|
11
|
-
|
CAN-LOW
|
IGN1(+)
|
12
|
DOOR OPEN
|
AT P OUT
|
BUZZER INPUT
|
13
|
BATTERRY CHARGE
|
-
|
GLOW
|
14
|
-
|
SEAT BELT
|
TAILGATE OPEN
|
15
|
IGN2(+)
|
4PULSE OUTPUT
|
IMMOBILIZER
|
16
|
ILL(-)
|
WATER SEPARATOR
|
-
|
17
|
DIAGNOSIS
|
|
|
18
|
-
|
|
|
19
|
RESET SWITCH
|
|
|
20
|
MODE SWTICH
|
|
| |
