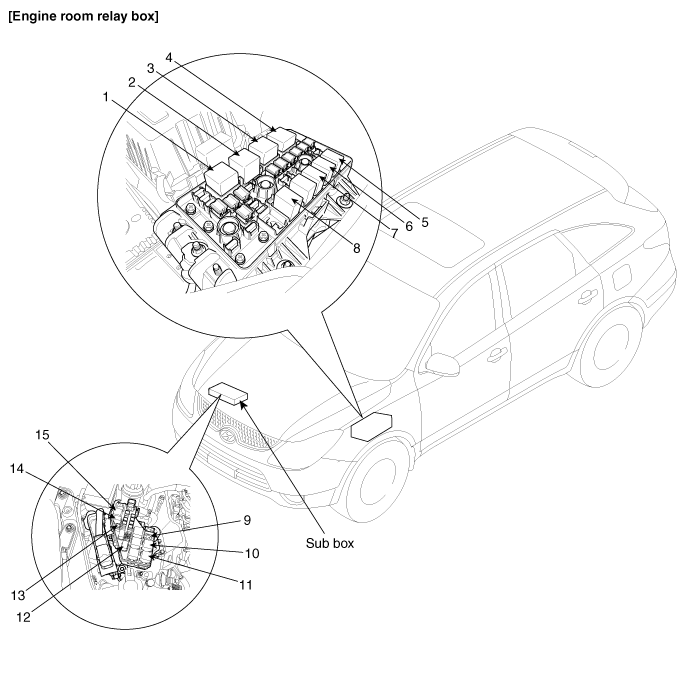

1. Head lamp relay
(Low-left side)
2. Head lamp relay
(High)
3. Start relay
4. Main relay
5. Horn
relay
|
6. Front fog lamp
relay
7. A/C relay
8. Fuel pump relay
9. Rear
A/C relay
10. Condenser fan 1
relay
|
11. Radiator fan
relay
12. Power outlet
relay
13. PTG relay
14. Head lamp relay (Low-right side)
15. Condenser fan 2
relay
|
