Engine Mechanical System > Timing System > Timing Chain > Components and Components Location

Components

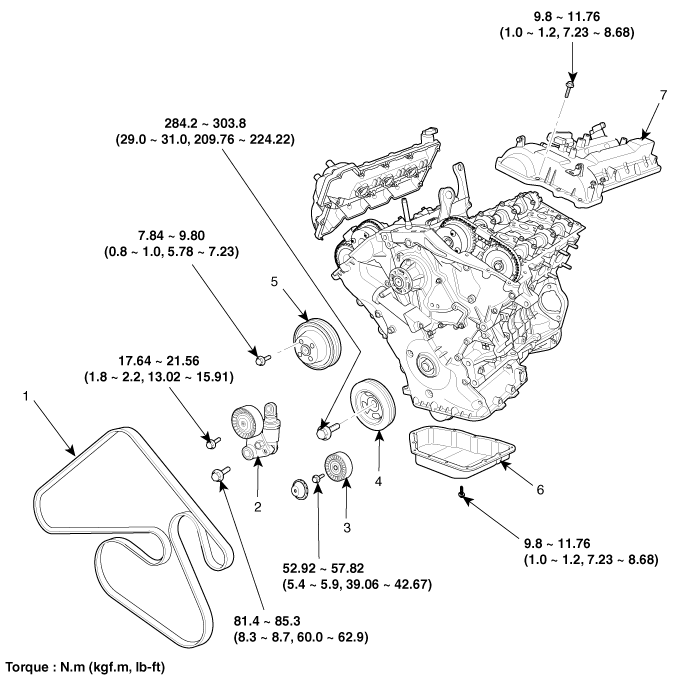

1. Drive belt
2. Drive belt tensioner
3. Idler
4. Damper pulley

5. Water pump pulley
6. Oil pan
7. Cylinder head cover

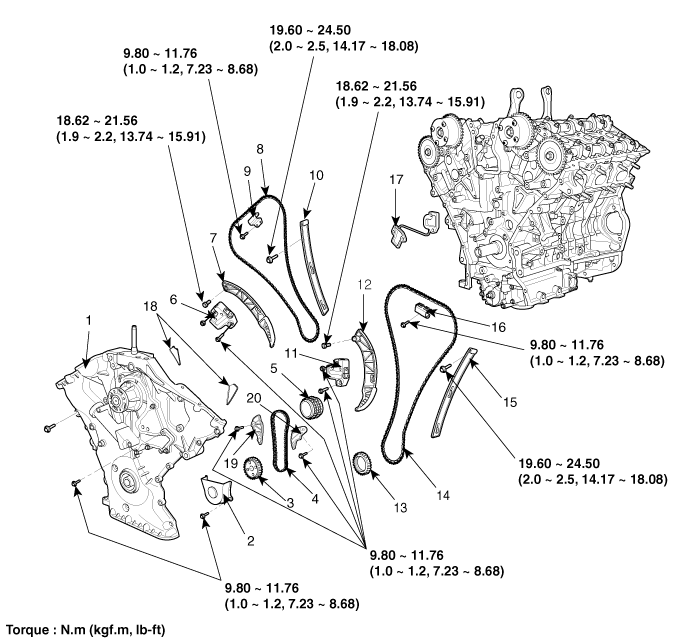

1. Timing chain cover
2. Oil pump chain cover
3. Oil pump sprocket
4. Oil pump chain
5. Crankshaft sprocket
6. Timing chain auto tensioner
7. Timing chain tensioner arm

8. Timing chain
9. Cam to cam guide
10. Timing chain guide
11. Timing chain auto tensioner
12. Timing chain tensioner arm
13. Crankshaft sprocket
14. Timing chain

15. Timing chain guide
16. Cam to cam guide
17. Tensioner adapter
18. Gasket
19. Oil pump chain guide
