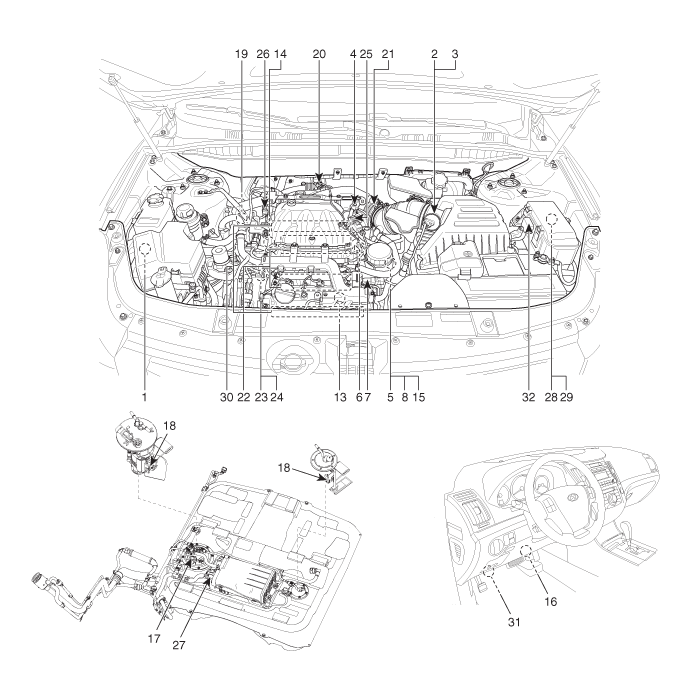

1. PCM (Powertrain Control Module)
|
2. Mass Air Flow Sensor (MAFS)
3.
Intake Air Temperature Sensor (IATS)
|
|
|
|
4. Manifold Absolute Pressure Sensor
(MAPS)
21. ETC Module [Throttle
Position Sensor (TPS) + ETC Motor]
25.
Purge Control Solenoid Valve (PCSV)
|
5. Engine Coolant Temperature Sensor
(ECTS)
15. CVVT Oil Temperature Sensor
(OTS)
|
|
|
|
6. Camshaft Position Sensor (CMPS) [Bank
1]
|
7. Camshaft Position Sensor (CMPS) [Bank
2].
|
|
|
|
8. Crankshaft Position Sensor (CKPS)
|
9. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor
1]
|
|
|
|
10. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor
2]
|
11. Heated Oxygen Sensor (HO2S) [Bank 2 / Sensor
1]
|
|
|
|
12. Heated Oxygen Sensor (HO2S) [Bank 2/Sensor
2]
|
13. Knock Sensor (KS) #1
14. Knock Sensor (KS) #2
|
|
|
|
16. Accelerator Position Sensor (APS)
|
17. Fuel Tank Pressure Sensor (FTPS)
|
|
|
|
18. Fuel Level Sensor (FLS)
|
19. A/C Pressure Transducer (APT)
|
|
|
|
20. Power Steering Pressure Sensor (PSPS)
|
22. Injector
30. Ignition
Coil
|
|
|
|
23. CVVT Oil Control Valve (OCV) [Bank
1]
24. CVVT Oil Control Valve (OCV)
[Bank 2]
|
26. Variable Intake Solenoid (VIS)
Valve
|
|
|
|
27. Canister Close Valve (CCV)
|
28. Main Relay
29. Fuel
Pump Relay
|
|
|
|
