Components

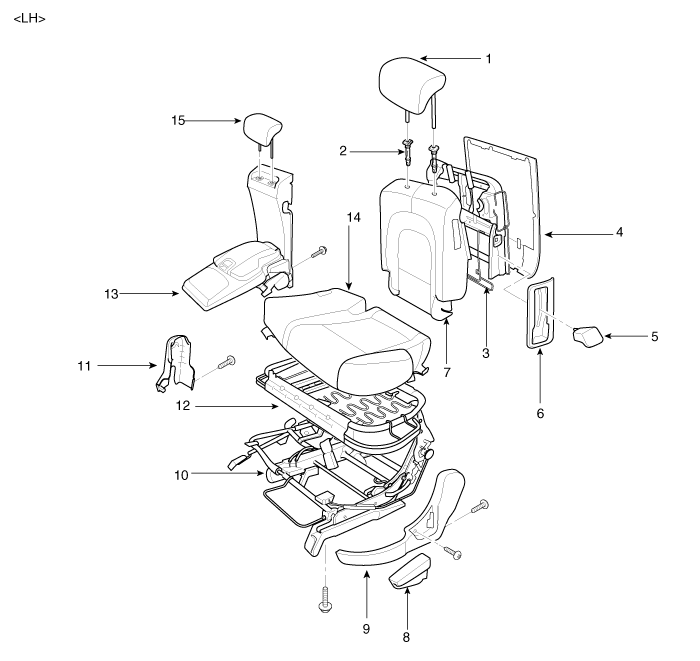

1. Headrest 2. Headrest guide 3. Seat back frame 4. Seat back panel 5. Recliner lever

6. Recliner cover 7. Seat cushion 8. Recliner lever 9. Recliner cover 10. Leg assembly

11. Recliner cover 12. Seat cushion frame 13. Armrest assembly 14. Seat cushion 15. Headrest

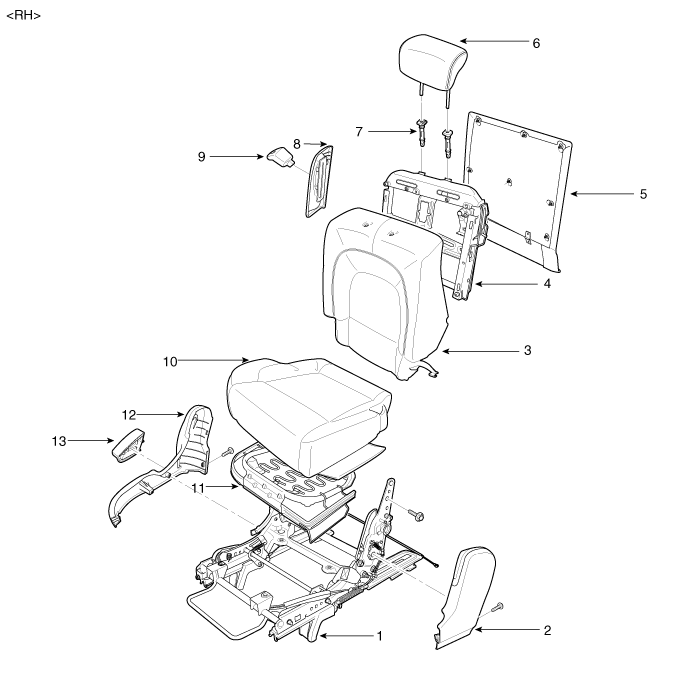

1. Seat cushion frame 2. Recliner cover 3. Seat back cushion& cover 4. Seat back frame

5. Seat back cover 6. Headrest 7. Headrest guide 8. Recliner cover

9. Recliner lever 10. Seat cushion cover &pad 11. Seat cushion frame 12. Shield cover 13. Recliner lever

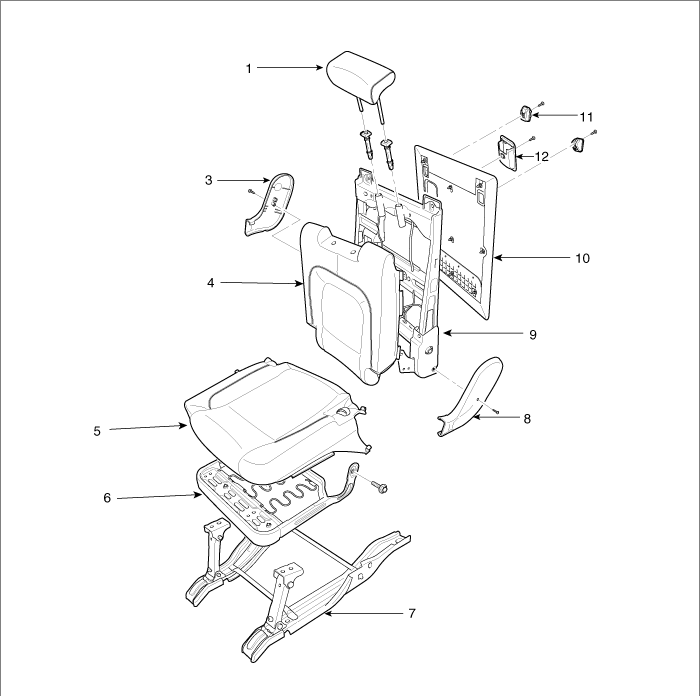

1. Headrest 2. Headrest guide 3. Recliner cover 4. Seat back cover & pad

5. Seat cushion cover & pad 6. Seat cushion frame 7. Leg assembly 8. Recliner cover

9. Seat back frame 10. Seat back panel 11. Hook 12. Recliner cover
