VERACRUZ(EN) >2013 > G 3.8 DOHC > Body (Interior and Exterior) > Interior > Console>Repair procedures
Replacement
Floor Console Replacement
-
When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
-
Put on gloves to protect your hands.
1.
Remove the knob (A).

2.
Remove the under cover (A).

3.
Disconnect the connector (A).

4.
Disconnect the connector (A).

5.
Remove the mat (B).
6.

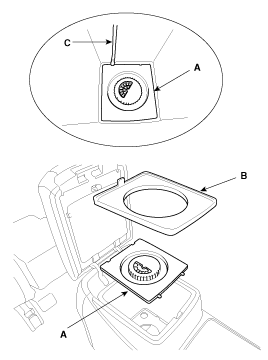

Using the screwdriver, remove the cool box cover (A).

7.
Remove the console extenser cover.
8.
After loosening the console mounting screws, remove the floor console assembly (A).

9.
Installation is the reverse of removal.
•
Make sure the connector is plugged in properly.
•
Replace any damage clips.
Armrest Replacement
1.
Remove the storage box (A).

2.
Remove the rear console cover (A).

3.
After loosening the armrest mounting screws, remove the armrest (A).

4.
Installation is the reverse of removal.
Console Extenser Cover
1.
Remove the extenser cover (A).

2.
Installation is the reverse of removal.
