Pin
|
Function

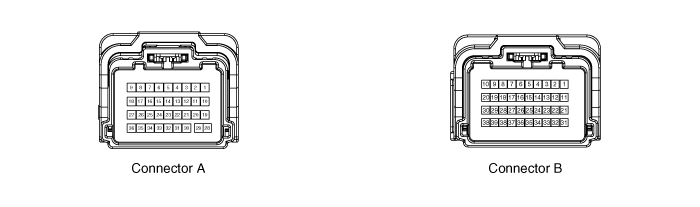

(Connector A)
|
Pin
|
Function
(Connector B)
|
1
|
-
|
1
|
-
|
2
|
-
|
2
|
-
|
3
|
-
|
3
|
-
|
4
|
-
|
4
|
-
|
5
|
-
|
5
|
-
|
6
|
-
|
6
|
-
|
7
|
-
|
7
|
-
|
8
|
-
|
8
|
-
|
9
|
-
|
9
|
-
|
10
|
Ignition
|
10
|
-
|
11
|
-
|
11
|
Seat Belt Pretensioner
[Driver] Low
|
12
|
-
|
12
|
Seat Belt Pretensioner
[Driver] High
|
13
|
(1st stage) Passenger
Airbag High
|
13
|
Seat belt Pretensioner
[Passenger] High
|
14
|
(1st stage) Passenger
Airbag Low
|
14
|
Seat belt Pretensioner
[Passenger] Low
|
15
|
(2nd stage) Driver Airbag
Low
|
15
|
-
|
16
|
(2nd stage) Driver Airbag
High
|
16
|
-
|
17
|
(2nd stage) Passenger
Airbag High
|
17
|
-
|
18
|
(2nd stage) Passenger
Airbag Low
|
18
|
-
|
19
|
(1st stage) Driver Airbag
Low
|
19
|
-
|
20
|
(1st stage) Driver Airbag
High
|
20
|
CAN_Low
|
21
|
-
|
21
|
Curtain Airbag [Driver]
Low
|
22
|
Front Impact Sensor
[Driver] Low
|
22
|
Curtain Airbag [Driver]
High
|
23
|
Front Impact Sensor
[Driver] High
|
23
|
Curtain Airbag
[Passenger] High
|
24
|
Front Impact Sensor
[Passenger] Low
|
24
|
Curtain Airbag
[Passenger] Low
|
25
|
Front Impact Sensor
[Passenger] High
|
25
|
Side Airbag [Driver]
Low
|
26
|
-
|
26
|
Side Airbag [Driver]
High
|
27
|
-
|
27
|
Side Airbag [Passenger]
High
|
28
|
Short Bar
|
28
|
Side Airbag [Passenger]
Low
|
29
|
Short Bar
|
29
|
Seat Track Position
Sensor [Driver]
|
30
|
Airbag Warning
Lamp
|
30
|
CAN_High
|
31
|
Ground
|
31
|
Side Impact Sensor [Rear
- Driver] Low
|
32
|
WCS
|
32
|
Side Impact Sensor [Rear
- Driver] High
|
33
|
-
|
33
|
Side Impact Sensor [Rear
- Passenger] Low
|
34
|
Crash
Output
|
34
|
Pressure Side Impact
Sensor [Rear - Passenger] High
|
35
|
-
|
35
|
Pressure Side Impact
Sensor [Front - Driver] Low
|
36
|
Telltale
Lamp
|
36
|
Pressure Side Impact
Sensor [Front - Driver] High
|
|
|
37
|
Pressure Side Impact
Sensor [Front - Passenger] Low
|
|
|
38
|
Pressure Side Impact
Sensor [Front - Passenger] High
|
|
|
39
|
Seat Belt Buckle Switch
[Driver]
|
|
|
40
|
Seat Belt Buckle Switch
[Passenger]
|
