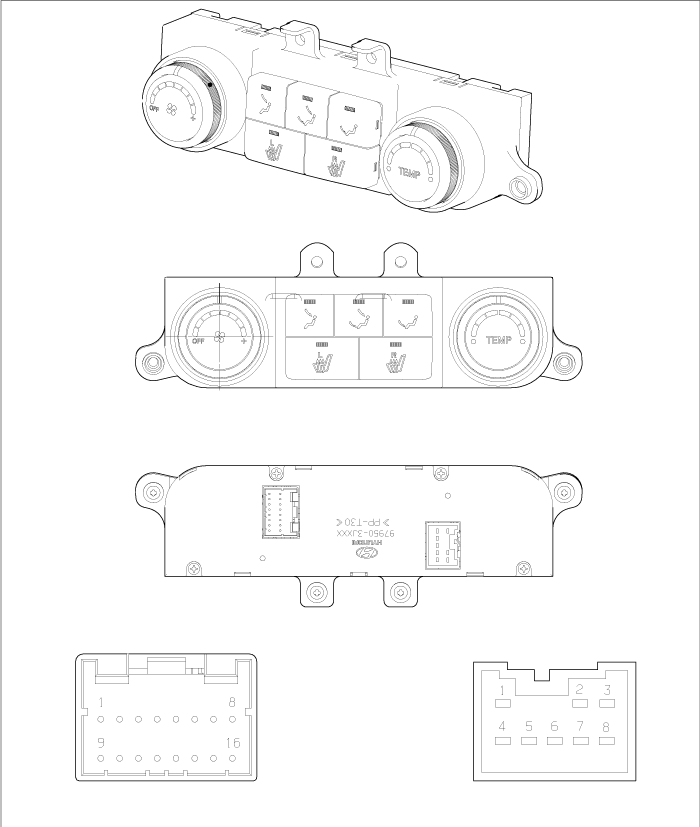

Component

Connector	Pin	Function	Connector	Pin	Function
Connector (A)	1	BATTERY	Connector (B)	1	RR TEMP ACTUATOR (COOL)
	2	FET(G)		2	RR TEMP ACTUATOR (WARM)
	3	GND		3	RR TEMP ACTUATOR F/B
	4	IGN2		4	LH S/HEAT
	5	REAR BLOWER MOTOR (+)		5	LH S/HEAT INDICATOR
	6	TAIL (ILL+)		6	-
	7	FET(D)		7	SENSOR REF (+5V)
	8	RHEOSTAT(ILL-)		8	SENSOR GND
				9	RR MODE ACTUATOR(VENT)
				10	RR MODE ACTUATOR(FLOOR)
				11	RR MODE ACTUATOR F/B
				12	RH S/HEAT
				13	RH S/HEAT INDICATOR
				14	-
				15	-
				16	REAR C-LINE
