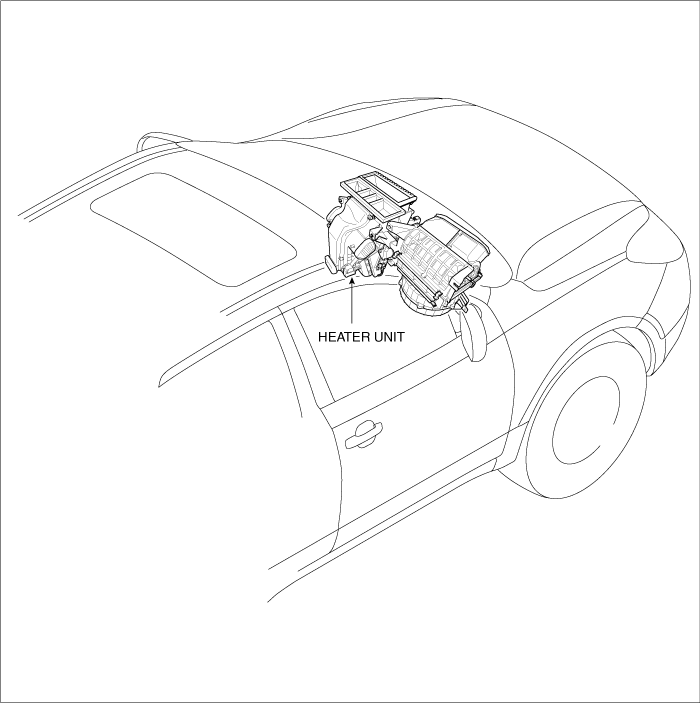

Component Location

Components

1. Heater case (L) 2. Separator 3. Evaporator core 4. Evaporator temperature sensor 5. Evaporator core seal 6. Cowl seal

7. Def duct bracket 8. Evaporator tube bracket 9. Evaporator tube bracket 10. Joint flange cap 11. Mode actuator

12. Mode cam 13. Def door 14. Def door lever 15. Vent door lever 16. Heater core cover

17. Heater core 18. Water temperature sensor 19. Heater case seal 20. Temp actuator 21. Floor door lever 22. Floor door arm

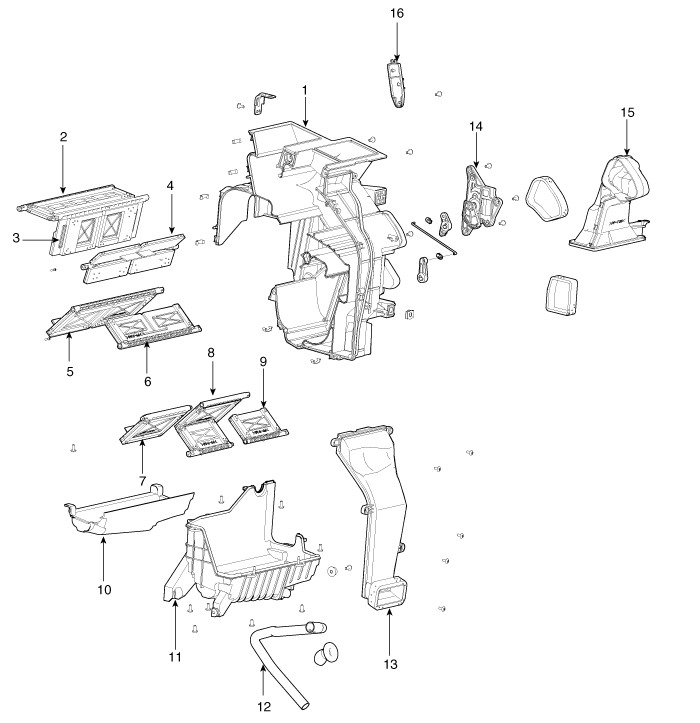

1. Heater case (R) 2. Def door 3. Vent door 4. Floor door 5. Temp door

6. Temp door (A) 7. Temp door 8. Temp door 9. Temp door (A) 10. Lower heater insulator

11. Heater lower case 12. Drain hose 13. Air duct (For cool box) 14. Temp actuator 15. Shower duct 16. Water temp sensor connector braket
