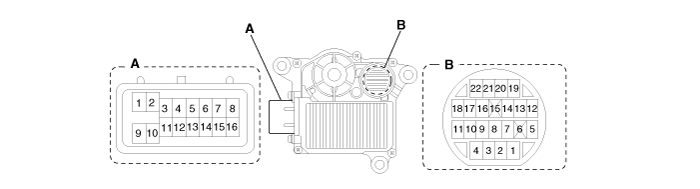

Terminal No.
|
Mark
|
Terminal Name
|
Terminal No.
|
Mark
|
Terminal
Name
|
A1
|
+B
|
Battery voltage
|
B4
|
SLUG
|
Lock-up control solenoid [SLU-]
|
A2
|
-
|
-
|
B5
|
S1
|
3-way solenoid [S1]
|
A3
|
TOP UP
|
Tiptronic input signal up
|
B6
|
-
|
-
|
A4
|
TIP DOWN
|
Tiptronic input signal down
|
B7
|
OTG
|
Oil temperature sensor [OT-]
|
A5
|
STLK
|
Start lock output signal
|
B8
|
OT
|
Oil temperature sensor [OT+]
|
A6
|
CAN L
|
CAN communication L line (Low)
|
B9
|
SLU
|
Lock-up control solenoid [SLU+]
|
A7
|
TIP M
|
Tiptronic input signal Manual
|
B10
|
SLC1G
|
Shift control solenoid [SLC1-]
|
A8
|
-
|
-
|
B11
|
SLC1
|
Shift control solenoid [SLC1+]
|
A9
|
GND
|
TCU ground
|
B12
|
NIN+
|
Input speed sensor [NIN+]
|
A10
|
-
|
-
|
B13
|
NIN-
|
Input speed sensor [NIN-]
|
A11
|
IG
|
Ignition switch input signal
|
B14
|
SLC3
|
Shift control solenoid [SLC3+]
|
A12
|
-
|
-
|
B15
|
-
|
-
|
A13
|
RVS
|
Reverse lamp output signal
|
B16
|
SLB1G
|
Shift control solenoid [SLB1-]
|
A14
|
CAN H
|
CAN communication H line (High)
|
B17
|
SLC2
|
Shift control solenoid [SLC2+]
|
A15
|
-
|
-
|
B18
|
SLC2G
|
Shift control solenoid [SLC2-]
|
A16
|
SFL
|
Shift lock output signal
|
B19
|
SP+
|
Output speed sensor [SP+]
|
B1
|
SLTG
|
Line pressure control solenoid [SLT-]
|
B20
|
SP-
|
Output speed sensor [SP-]
|
B2
|
S2
|
3-way solenoid [S2]
|
B21
|
SLB1
|
Shift control solenoid [SLB1+]
|
B3
|
SLT
|
Line pressure control solenoid [SLT+]
|
B22
|
SLC3G
|
Shift control solenoid
[SLC3-]
|
