| 2. |
Disconnect evaporator temperature
sensor. |
| 3. |
Using the multi-tester, Measure resistance
between terminal "1" and "2" of evaporator temperature
sensor.
[Specification]
Evaporator core
temperature [°C(°F)]
|
Resistance
[kΩ]
|
-10 (14)
|
43.35
|
-5 (23)
|
34.48
|
0 (32)
|
27.62
|
5 (41)
|
22.27
|
10 (50)
|
18.07
|
15 (59)
|
14.75
|
20 (68)
|
12.11
|
25 (77)
|
10.00
|
30 (86)
|
8.30
|
35 (95)
|
6.93
|
40 (104)
|
5.81
|
45 (113)
|
4.9
|
50 (122)
|
4.15
|
|
| 4. |
If the measured resistance is not
specification, substitute with a known-good evaporator temperature
sensor and check for proper
operation. |
| 5. |
If the problem is corrected, replace the
evaporator temperature sensor. |
| 1. |
Disconnect the negative (-) battery
terminal. |
| 2. |
Remove the extenser cover (A).
|
| 3. |

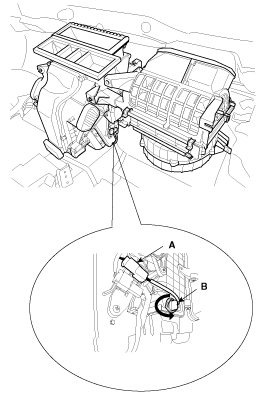

Disconnect the evaporator sensor connector
(A). |
| 4. |
Remove the evaporator temperature sensor
(B), by pulling it after rorating 90° in a counter clock wise
direction.
|
Take care that evaporator core pins
are not
bent. | |
| 5. |
Installation is the reverse order of
removal. | |
