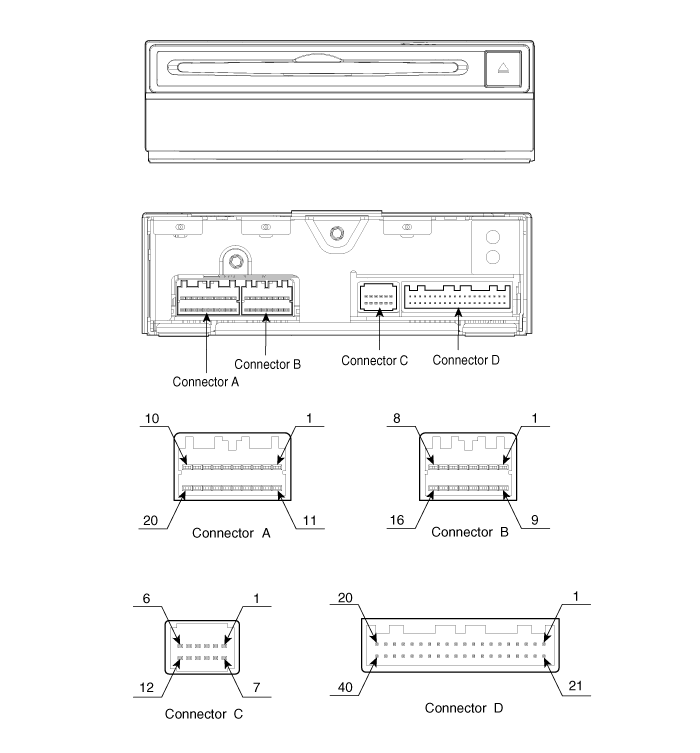

Component Location

Pin NO.	Pin Name	Pin Deficition
1	VID IN	Composite Video (AVN or AUX to RSE)
2	SYNC IN	RGB Video SYNC Signal
3	VID Red	RGB Video Red Signal
4	VID Blue	RGB Video Blue Signal
5	N.C	N.C
6	VID Out	Composite Video (RSE to AVN)
7	AUX in R	AUX Audio Right In
8	AUX in COM	AUX Audio Common
9	CAN Low	CAN Bus Signal
10	AUX INT L	AUX Jack Insertion Status
11	VID in COM	Composite Video Common (AVN or AUX to RSE)
12	RGB SYNC GND	RGB Video SUNC Shield Ground
13	VID Green	RGB Video Green Signal
14	RGB COM	RGB Video Common
15	N.C	N.C
16	VID out COM	Composite Video Common (RSE to AVN)
17	AUX in L	AUX Audio Left In
18	CAN High	CAN Bus Signal
19	RSE RST	Reset Signal To Rse
20	AUX INT R	AUX Jack Right Insertion Status

Pin NO.	Pin Name	Pin Definition
1	ALT L	Alternator Signal
2	N.C	N.C
3	AUD in L	Audio Left
4	AUD out R	Audio Right (RSE to AVN or Audio)
5	AUD out COM	Audio Right (RSE to AVN or Audio)
6	DIM+ Wakeup	Dimming Control Signal
7	GND	Battery Power Ground
8	BAT+	Battery Power
9	RSE DET	RSE Detection
10	AUD in R	Audio Right
11	AUD in COM	Audio Common
12	AUD OUT L	Audio Left (RSE to AVN or Audio)
13	DIM- PWM	Dimming Control Signal
14	ACC	Vehicle ACC Signal
15	GND	Battery Power Ground
16	BAT+	Battery Power

Pin NO.	Pin Name	Pin Definition
1	DO	SPI Bus Data Output
2	CL	SPI Bus Clock
3	CE	SPI Bus Chip Enable Signal
4	P GND	Power Ground
5	LCD DIM	Trimplate LCD Dimming Signal
6	FBATT	Battery For Trimplate BACKLIT
7	Power	Power On/Off Signal
8	12V SW1	Battery Switch Signal For Trimplate
9	R SW2	Rotary Encoder CCW
10	R SW1	Rotary Encoder CW
11	LED DIM	Trimplate LED Dimming Signal
12	DI	SPI Bus Data Input

Pin NO.	Pin Name	Pin Definition
1	GND	Ground
2	FBATT	Filtered Battery Line
3	P SW	Limited Switch Signal
4	FBATT	Filtered Battery Line
5	GND	Ground
6	GND	Ground
7	VGND	Video Ground
8	FB	RGB Overlay Control Signal
9	IR Remote	IR Remote Control Signal
10	FBATT IR SW	IR Battery Switch Control Signal
11	RGB SYNC	Analog RGB SYNC Signal
12	VCC SW	VCC Switch Control Signal
13	VBL SW	VBL Switch Control Signal
14	GND	Ground
15	VGND	Video Ground
16	GND	Ground
17	IR aud L	IR Audio Left Channel
18	IR aud COM	IRR Audio Common
19	IR aud R	IR Audio Right Chanel
20	GND (IR)	Ground
21	GND	Ground
22	FBATT	Filtered Battery Line
23	FBATT	Filtered Battery Line
24	VGND	Video Ground
25	DISP DIM	Dimming Control Signal
26	GND	Ground
27	I2C Data	I2C Bus Data Signal
28	I2C CLK	I2C Bus Clock Signal
29	GND	Ground
30	T Out	Thermistor Output Signal
31	GND	Ground
32	VGND	Video Ground
33	VBO	Analog RGB Blue Signal
34	VGO	Analog RGB Green Signal
35	VRO	Analog RGB Red Signal
36	VGND	Video GND
37	DISP VID	Backlighting Ground Return
38	VGND	Video GND
39	VSYNC	Vertical SYNC Signal
40	HSYNC	Horizontal Sync Signal
