VERACRUZ(EN) >2011 > G 3.8 DOHC > Fuel System > Engine Control System > Crankshaft Position Sensor (CKPS)>Troubleshooting
Waveform

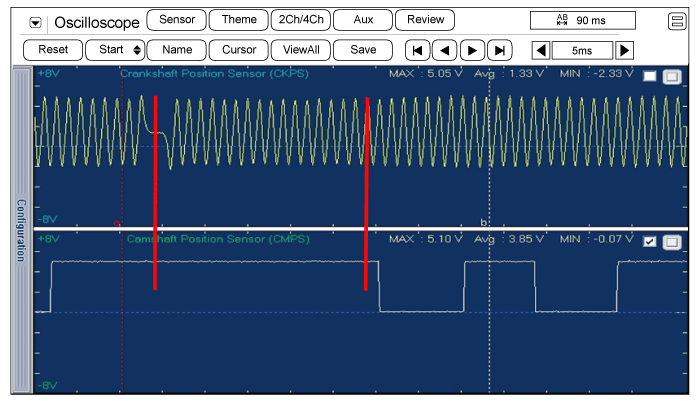

This example shows a typical Crankshaft Position Sensor (CKPS) and Camshaft Position Sensor (CMPS) waveform at idle. If the 17th signal of the CKPS after missing tooth is aligned with the high signal of the CMPS at idle, PCM recognizes that Synchronization between CKPS and CMPS is completed.
