Fuel System > Engine Control System > Purge Control Solenoid Valve (PCSV)

VERACRUZ(EN) >2011 > G 3.8 DOHC > Fuel System > Engine Control System > Purge Control Solenoid Valve (PCSV)>Schematic Diagrams

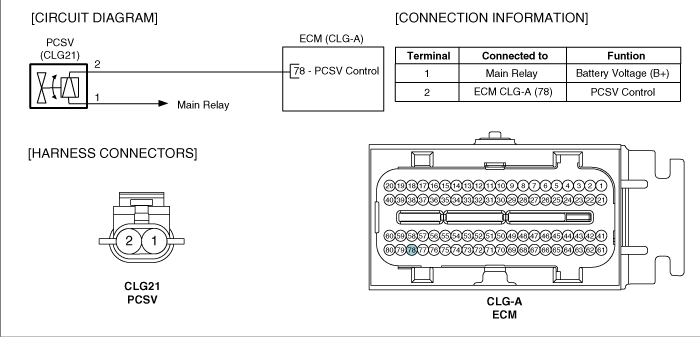

Circuit Diagram
