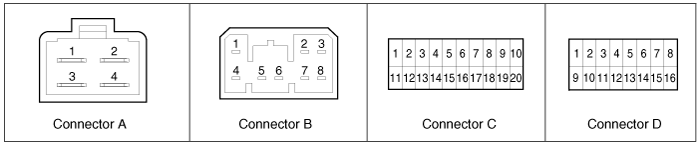

Connector Pin Name
No.
|
CONNECTOR A
|
CONNECTOR B
|
CONNECTOR C
|
CONNECTOR D
|
1
|
RECLINE
MOTOR BACK
|
-
|
RECLINE FWD
SENSOR
|
RECLINE BACK
LIM SW
|
2
|
RECLINE
MOTOR FWD
|
SLIDE MOTOR
FWD
|
"R"
POSITION
|
RECLINE FWD
LIM SW
|
3
|
POWER
GND
|
FRT HEIGHT
MOTOR DOWN
|
FRT HEIGHT
UP SENSOR
|
RR HEIGHT UP
SW
|
4
|
POWER
B+
|
-
|
FRT HEIGHT
DOWN SENSOR
|
RR HEIGHT
DOWN SW
|
5
|
|
RR HEIGHT
MOTOR UP
|
"P"
POSITION
|
SLIDE FWD
LIM SENSOR
|
6
|
|
RR HEIGHT
MOTOR DOWN
|
FR HEIGHT UP
SW
|
SLIDE BACK
LIM SW
|
7
|
|
SLIDE MOTOR
BACK
|
SLIDE FWD
SENSOR
|
SLIDE BACK
SENSOR
|
8
|
|
FRT HEIGHT
MOTOR UP
|
RR HEIGHT UP
SENSOR
|
RECLINE BACK
SENSOR
|
9
|
|
|
RR DEIGHT
DOWN SENSOR
|
SENSOR
GND
|
10
|
|
|
FR HEIGHT
DOWN SW
|
SIGNAL
GND
|
11
|
|
|
RECLINE BACK
SW
|
-
|
12
|
|
|
RECLINE FWD
SW
|
-
|
13
|
|
|
CAN-L
BUS
|
-
|
14
|
|
|
CAN-H
BUS
|
-
|
15
|
|
|
SLIDE BACK
SW
|
-
|
16
|
|
|
ECU
B+
|
-
|
17
|
|
|
IGN2
|
|
18
|
|
|
SLIDE FWD
SW
|
|
19
|
|
|
LIMIT SW
GND
|
|
20
|
|
|
SENSOR
Vcc
|
|
IMS Input/Output Specification
Connector A
No.
|
PIN NAME
|
VOLTAGE
|
1
|
RECLINE
MOTOR BACK
|
Relay
operating current : 20A
|
2
|
RECLINE
MOTOR FORWARD
|
Relay
operating current : 20A
|
3
|
POWER
GND
|
Operating
current (MAX) : 11A
Locked rotor
connector (MAX) : 65A
|
4
|
B+
|
Operating
current (MAX) : 11A
Locked rotor
connector (MAX) : 65A
|
Connector B
No.
|
PIN NAME
|
VOLTAGE
|
1
|
-
|
-
|
2
|
SLIDE MOTOR
FORWARD
|
|
3
|
FRONT HEIGHT
MOTOR DOWN
|
Relay
operating current : 20A
|
4
|
-
|
-
|
5
|
REAR HEIGHT
MOTOR UP
|
Relay
operating current : 20A
|
6
|
REAR HEIGHT
MOTOR DOWN
|
Relay
operating current : 20A
|
7
|
SLIDE MOTOR
BACK
|
Relay
operating current : 20A
|
8
|
FRONT HEIGHT
MOTOR UP
|
Relay
operating current : 20A
|
Connector C
No.
|
PIN NAME
|
VOLTAGE
|
1
|
RECLINE
FORWARD SENSOR
|
HALL
sensor
|
2
|
-
|
-
|
3
|
FRONT HEIGHT
UP SENSOR
|
HALL
sensor
|
4
|
FRONT HEIGHT
DOWN SENSOR
|
HALL
sensor
|
5
|
"P"
POSITION
|
ON :
GND
OFF : OPEN
|
6
|
FRONT UP
SWITCH
|
ON :
GND
OFF : OPEN
|
7
|
SLIDE
FORWARD SENSOR
|
HALL
sensor
|
8
|
REAR HEIGHT
UP SENSOR
|
HALL
sensor
|
9
|
REAR HEIGHT
DOWN SENSOR
|
HALL
sensor
|
10
|
FRONT HEIGHT
DOWN SWITCH
|
ON :
GND
OFF : OPEN
|
11
|
RECLINE BACK
SWITCH
|
NOMAL
CLOSE
|
12
|
RECLINE
FORWARDSWITCH
|
NOMAL
CLOSE
|
13
|
CAN LOW
BUS
|
ON :
GND
OFF : OPEN
|
14
|
CAN HIGH
BUS
|
ON :
GND
OFF : OPEN
|
15
|
SLIDE BACK
SWITCH
|
NOMAL
CLOSE
|
16
|
ECU
POWER+
|
NOMAL
CLOSE
|
17
|
IGN
2
|
HALL
sensor
|
18
|
SLIDE FWD
SWITCH
|
HALL
sensor
|
19
|
LIMIT SWITCH
GND
|
ON :
GND
OFF : OPEN
|
20
|
SENSOR
POWER
|
ON :
GND
OFF :
OPEN
|
Connector D
No.
|
PIN NAME
|
VOLTAGE
|
1
|
RECLINE BACK
LIM SWITCH
|
|
2
|
RECLINE
FORWARD LIM SWITCH
|
|
3
|
REAR HEIGHT
UP SWITCH
|
ON :
GND
OFF : OPEN
|
4
|
REAR HEIGHT
DOWN SWITCH
|
Dark current
: 2mA (MAX)
|
5
|
SLIDE
FORWARD LIM SENSOR
|
B+
|
6
|
SLIDE BACK
LIM SENSOR
|
ON :
GND
OFF : OPEN
|
7
|
SLIDE
FORWARD SENSOR
|
+12V
|
8
|
RECLINE BACK
SWITCH
|
+5V
|
9
|
SENSOR
GND
|
|
10
|
SIGNAL
GND
|
|
