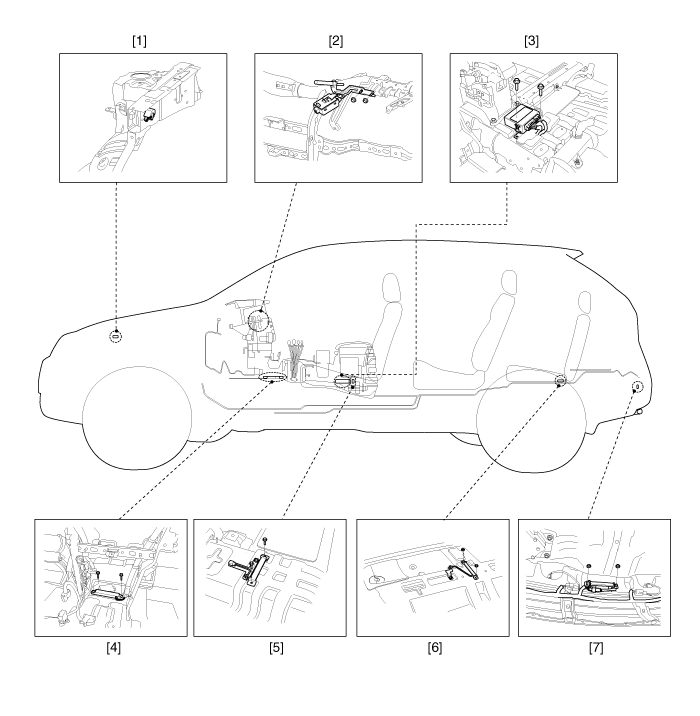

Component Location (1)

1. Buzzer 2. RF receiver 3. SMART KEY unit 4. Interior antenna 1

5. Interior antenna 2 6. Interior antenna 3 7. Bumper antenna

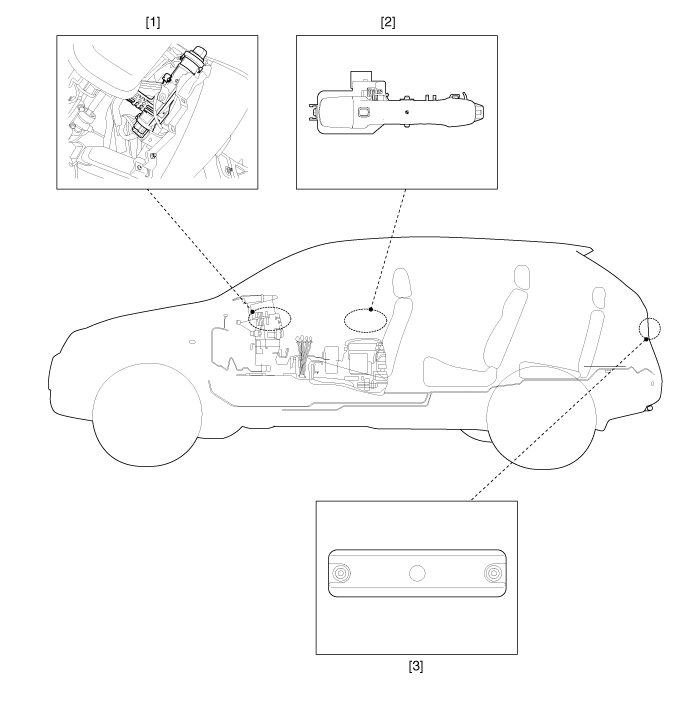

Component Location (2)

1. Mechatronic steering lock (MSL) 2. Door outside handle

3. Tailgate request switch
