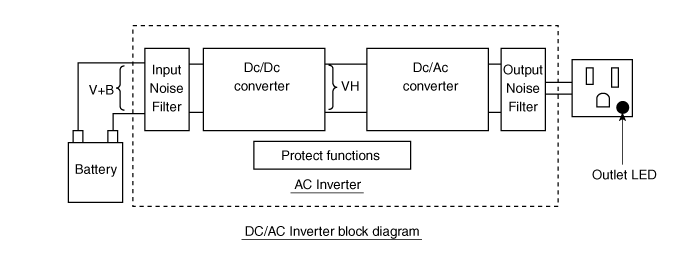

The inverter system
covered by this specification consists of the following;
| - |
DC/AC Inverter converts the battery's DC
voltage to 115Vrms, 60Hz AC
voltage. |
| - |
The battery's DC voltage is input to the
inverter by wiring. |
| - |
DC voltage from battery is converted to DC
high voltage.
Its conversion is performed by DC/DC converter
area in the DC/AC inverter. |
| - |
DC high voltage is converted to the AC
voltage.
Its conversion is performed by DC/AC converter
area in the DC/AC inverter.
VH, peak voltage of output changes according
to input battery voltage.
The effective value of output is controlled by
changing pulse width (Ton). |
| - |
The AC voltage from the DC/AC Inverter is
output to the standard AC Outlet for vehicle use by a
wiring. |
| - |
The DC/AC Inverter has some protect functions
for protecting itself and the connecting
things. |
These supply 115VAC/150W
electric power to operate electric accessories or equipment when the key
is in the "ON" position or engine is running. The AC Inverter is turn on
by pushing in the switch. To turn the AC Inverter off, push the switch a
second time.
| •
|
When you do not use the AC Inverter,
make sure that the switch is turned off, and close the AC
Inverter cover. |
| •
|
Use when the engine is running and
remove a plug from the AC Inverter after using the electric
appliance. Using when the engine stops or remaining the
electric appliance with plugged in for long time may cause the
battery to be discharged. |
| •
|
Do not use the electric accessories or
equipment more than maximum electric power consumption count
150W by AC 115V. |
| •
|
Some electronic devices can cause
electronic interference when plugged into the AC Inverter.
These devices may cause excessive audio noise and malfunctions
in other electronic systems or devices used in your
vehicle. |
| •
|
Do not use the broken electric
accessories or equipment, it is receiving an electric shock
and becomes impossible to use an AC Inverter and
vehicle. |
| •
|
Do not use two or more electric
accessories or equipment at the same time by plug sockets for
branch. | |
| •
|
AC Inverter can be dangerous! When using
the AC Inverter, carefully observe the following precautions
to avoid serious injuries. |
| •
|
Do not use the out of the heat electric
product(coffeepot, toaster, heater, etc.). It will be cause of
a fire. |
| •
|
Do not put a foreign element(pin, etc.)
and do not touch by wet hand, you may get an electric
shock. |
| •
|
Do not use the electric products that a
steam comes, such as a coffeepot, an electric steam iron.
Steam had fogged the glass or mirror of
vehicle. |
| •
|
Do not let the child touch an AC
Inverter. |
| •
|
When not in use an AC Inverter, close
the cover. If the foreign element(rain water, beverage, pin,
snow, etc.) into the plug socket, it may cause breaking down
the vehicle and injury or death by electric
shock. | |
