VERACRUZ(EN) >2009 > G 3.8 DOHC > Body Electrical System > Audio>Troubleshooting
Troubleshooting

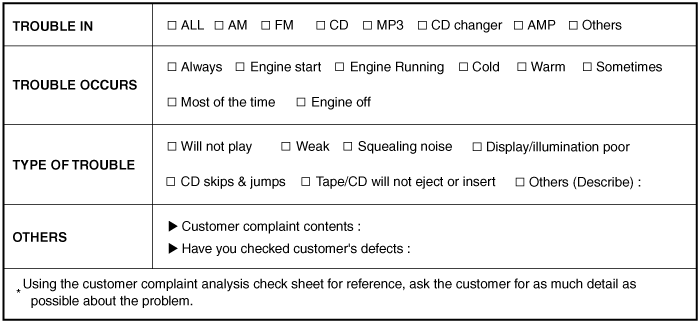

Customer Complaint Analysis Check Sheet

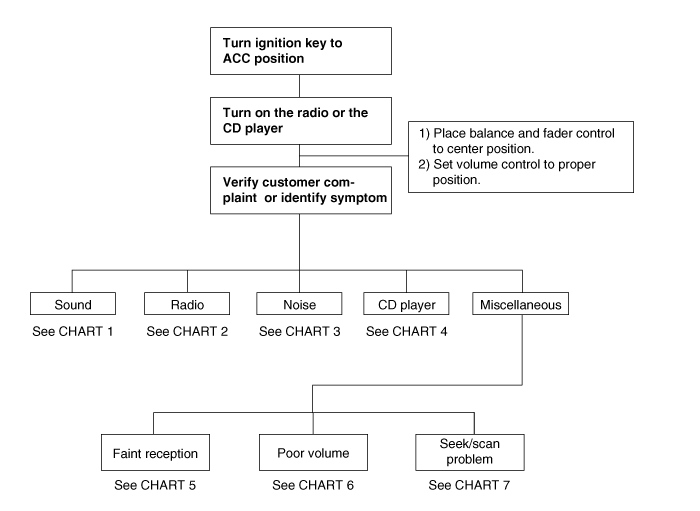

There are six areas where a problem can occur: wiring harness, the radio, the CD player, and speaker. Troubleshooting enables you to confine the problem to a particular area.

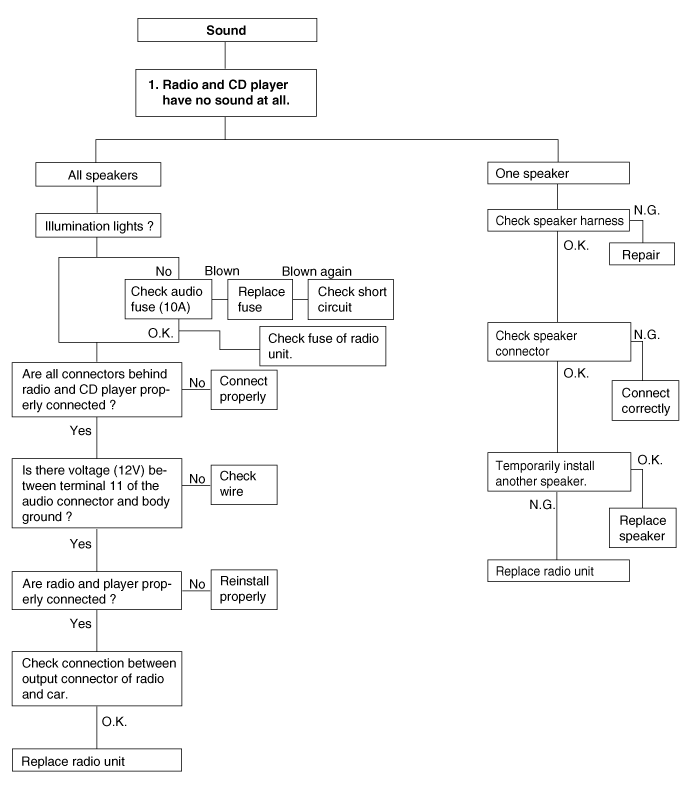

Chart 1

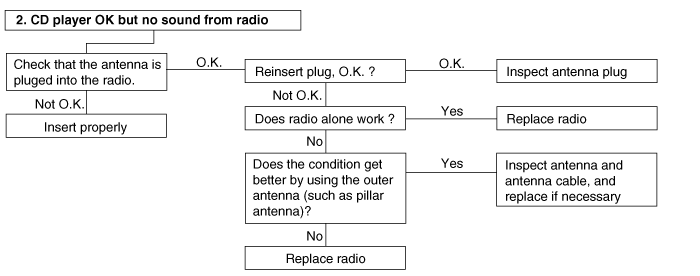

Chart 2

Chart 3

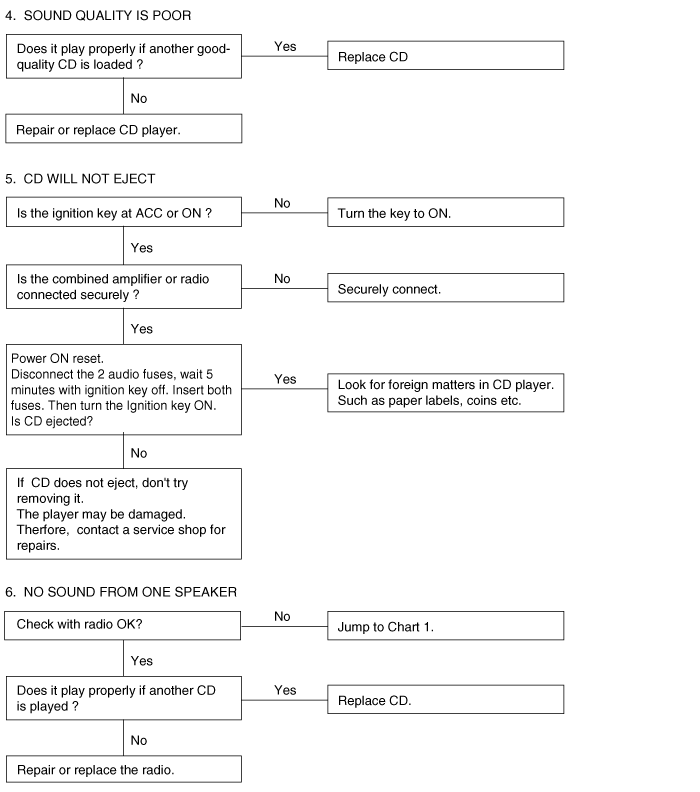

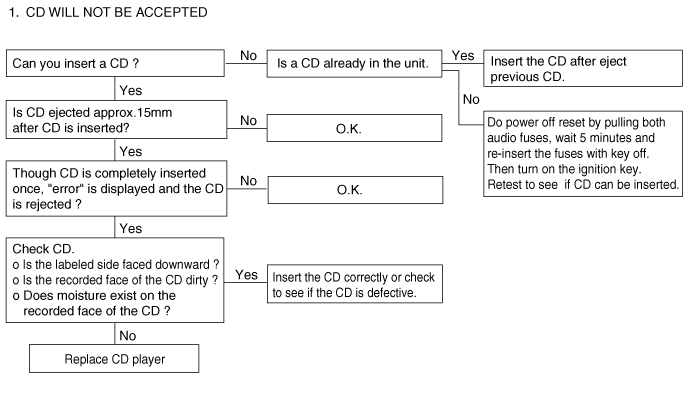

Chart 4

Chart 5

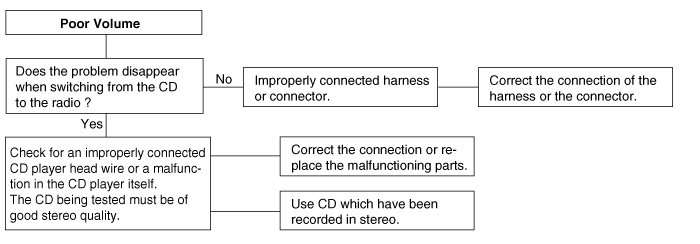

Chart 6

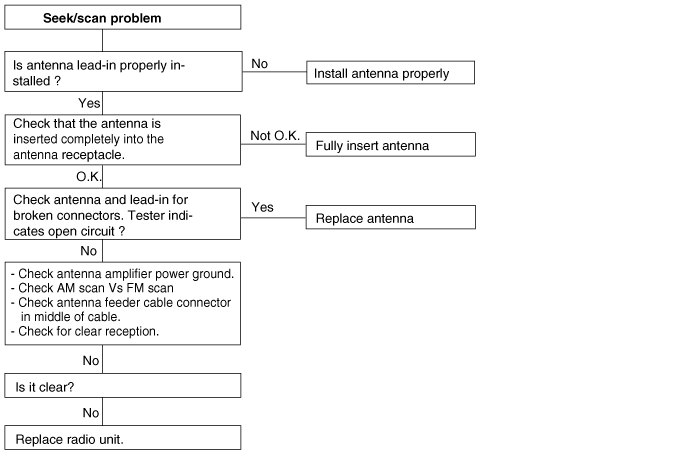

Chart 7
