VERACRUZ(EN) >2009 > G 3.8 DOHC > Driveshaft and axle > Driveshaft Assembly > Front Driveshaft>Components and Components Location

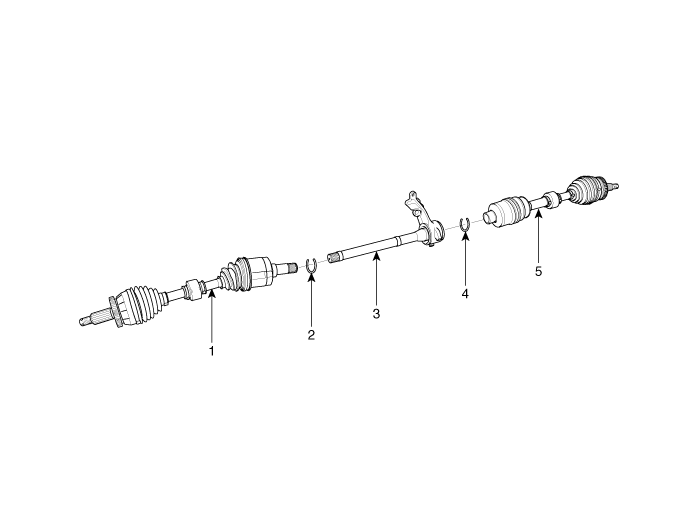

Component
1. Driveshaft (LH)
2. Circlip
3. Inner shaft bearing bracket assembly
4. Circlip
5. Driveshaft (RH)

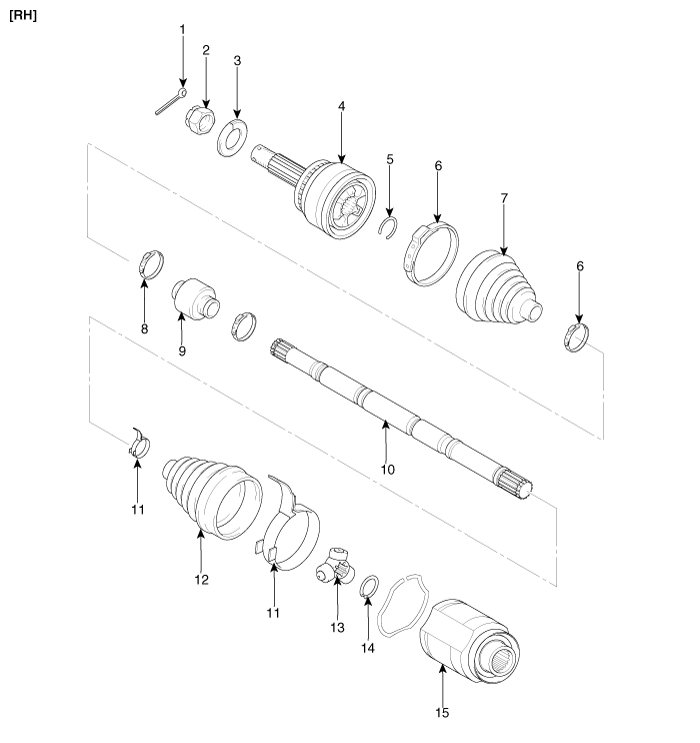

Component
1. Split pin
2. Castle nut
3. Washer
4. BJ assembly
5. Clip A
6. BJ boot band
7. BJ boot
8. Dynamic damper band
9. Dynamic damper
10. Shaft
11. PTJ boot band
12. PTJ boot
13. Trunion assembly
14. Circlip
15. PTJ assembly

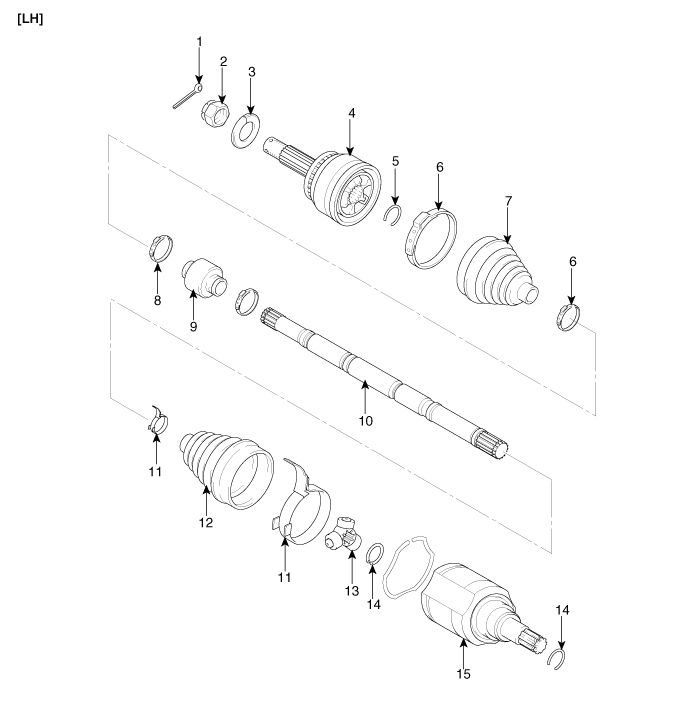

1. Split pin
2. Castle nut
3. Washer
4. BJ assembly
5. Clip A
6. BJ boot band
7. BJ boot
8. Dynamic damper band
9. Dynamic damper
10. Shaft
11. PTJ boot band
12. PTJ boot
13. Trunion assembly
14. Circlip
15. PTJ assembly
