VERACRUZ(EN) >2009 > G 3.8 DOHC > Brake System > ESC(Electronic Stability Control) System>C2380 ABS/TCS/ESC valve error
Component Location

General Description
The ABS HECU is composed of a ECU (Electronic Control Unit ) and an HCU( Hydraulic Control Unit), so the HECU hardware includes all solenoid valves inside the unit as well as the ECU.
Solenoid valves are switched to ON, OFF by HECU when the ABS is activated. Solenoid valves function is to increase, decrease or maintain the hydralic pressure supplied to a wheel cylinder.
DTC Description
The HECU monitors the operation of the valves by checking the drive circuit of the solenid valves, and then sets this code when the unexpcted drive voltage is detected.
For example, the HECU sets the DTC if an unexpected high drive voltage is detected when the valve relay is switched to OFF. (or unexpected low voltage is detected when the solenoid valve drive TR is switched to ON)
DTC Detecting Condition
Item
Detecting Condition
Possible cause
DTC
Strategy
Internal Monitoring
Faulty HECU
Enable
Conditions
If the valve relay is switched ON and corrESConding solenoid driver OFF and the voltage of solenoid < 3.5±0.5V continuously for 56ms, the failure is detected.
If the valve relay is switched ON and corrESConding solenoid driver ON and the voltage of solenoid > 1.5±0.5V continuously for 56ms, the failure is detected.
Fail Safe
The ABS/EBD/ESC functions are inhibited.
The ABS/EBD/ESC warning lamps are activated.

Schematic Diagram

Monitor Actuation Test
1.
Connect scantool to Data Link Connector(DLC).
2.
Ignition "ON" & Engine "OFF".
3.

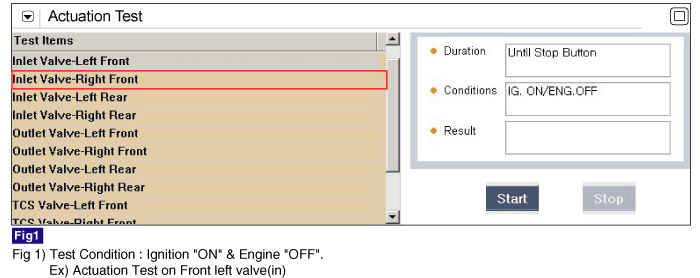

Select the "Actuation Test" mode on the scantool.
4.
Inspect operating status of all valves with Actuation Test.

Specification : It's normal if operating sound is heard.

5.
Do all valves operate normally?

▶ Fault is intermittent caused by poor connection in power harness (ABS2) and/or HECU's connector or was repaired and HECU memory was not cleared.
Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
Repair or replace as necessary and then go to "Verification Of Vehicle Repair" procedure.

▶ Go to "Terminal and Connector Inspection" procedure.

Terminal and Connector Inspection
1.
Many malfunctions in the electrical system are caused by poor harness(es) and terminal condition. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2.
Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3.
Has a problem been found?

▶ Repair as necessary and then go to "Verification Of Vehicle Repair" procedure.

▶ Substitute with a known-good HECU and check for proper operation.
If problem is corrected, replace HECU and then go to "Verification Of Vehicle Repair" procedure.

Verification of Vehicle Repair
After a repair, it is essential to verify that the fault has been corrected.
1.
Connect scantool and select "Diagnostic Trouble Codes(DTCs)" mode.
2.
Using a scantool, Clear DTC.
3.
Operate the vehicle within DTC Detecting Condition in General Information. (Start and drive vehicle in gear and maintain vehicle speed at or above 40kmh. (24mph))
4.
Using a scantool, Check DTC present.
5.
Are any DTCs present ?

▶ Go to the applicable troubleshooting procedure.

▶ System performing to specification at this time.
