Replacement

• When installing the belt, make sure not to damage the pretensioner.

1.	Disconnect the battery negative cable, and wait for at least three minutes before beginning work.

2.	Remove the following items first. A. Front seat assembly. B. Door scuff trim.

3.	After raise the lower anchor cover (A), loosen the lower anchor (B) mounting bolt .

4.	Remove the center pillar lower trim.

5.	Remove the center pillar upper trim.

6.	After loosening the mounting bolt, remove the upper anchor (A).

7.	After disconnecting the pretensioner connector lock pin, remove the pretensioner connector, loosen the mounting bolt, then remove the pretensioner.

8.	Installation is the reverse of removal. • When installing the upper trim, be careful to combine trim and height adjuster well, all the lowest adjusting position.

1.	Remove the following items first. A. Rear seat assembly. B. Rear door scuff trim.

2.	After raise the lower anchor cover (A), loosen the lower anchor (B) mounting bolt.

3.	Remove the third seat lower anchor.

4.	Remove the luggage side trim.

5.	Remove the C-pillar upper trim.

6.	Remove the upper anchor (A).

7.	After loosening the retractor (B) mounting bolt, remove the rear seat belt (C).

8.	Installation is the reverse of removal.

1.	Remove the following items first. A. Rear seat assembly. B. Rear door scuff trim. C. Tranverse trim.

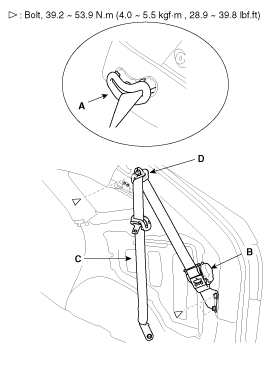

2.	After loosening the mounting bolt, remove the lower anchor (A).

3.	After disconnect the cover (A), remove the luggage side trim.

4.	After loosening the mounting bolt, remove the upper anchor (D).

5.	After loosening the retractor (B) mounting bolt,remove the rear seat belt (C).

6.	Installation is the reverse of removal.

1.	Disconnect the buckle switch connector from the floor wire harness connector.

2.	Remove the front seat assembly.

3.	Remove the wire harness of buckle from seat.

4.	Remove the seat belt buckle (A).

5.	Installation is the reverse of removal.

1.	Remove the third seat assembly.

2.	Remove the seat belt buckle (A).

3.	Installation is the reverse of removal.

1.	Remove the following items first. A. Front seat assembly. B. Door scuff trim. C. Front seat belt. D. Center pillar trim.

2.	After loosening the mounting bolt, then remove theheight adjuster (A).

3.	Installation is the reverse of removal.
