VERACRUZ(EN) >2009 > G 3.8 DOHC > Restraint > SRSCM>Schematic Diagrams

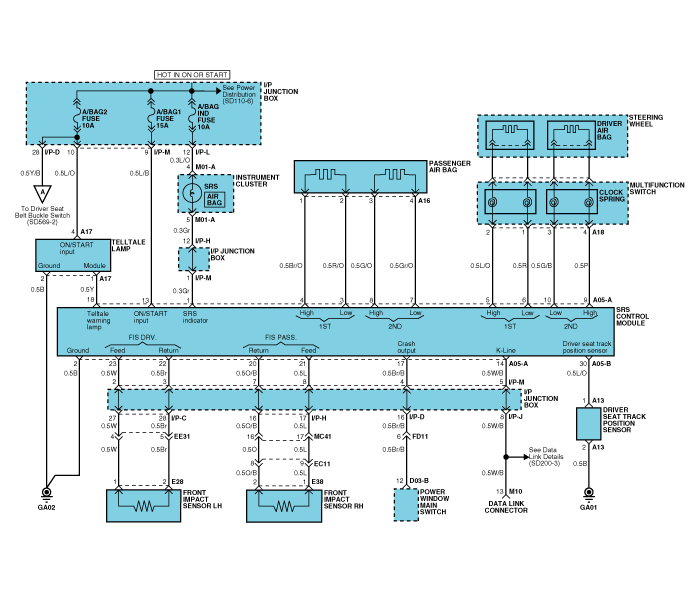

Circuit Diagram (1)

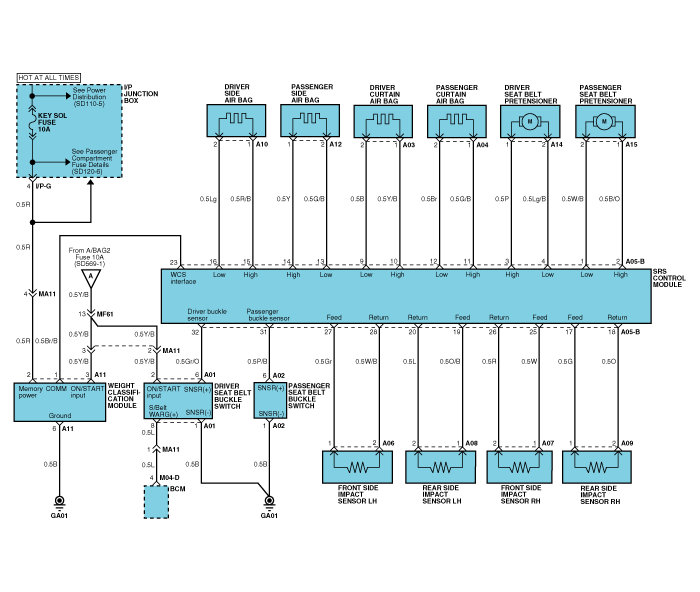

Circuit Diagram (2)

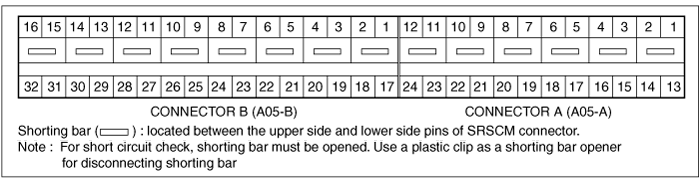

SRSCM Connector Terminal
Harness Connector

Pin
 Function (Connector A)
 Pin
 Function (Connector B)
1
 Airbag Warning Lamp
 1
 Seat Belt Pretensioner [Front-Passenger] Low
2
 Ground
 2
 Seat Belt Pretensioner [Front-Passenger] High
3
 (1st stage) Passenger Airbag Low
 3
 Seat Belt Pretensioner [Front-Driver] High
4
 (1st stage) Passenger Airbag High
 4
 Seat Belt Pretensioner [Front-Driver] Low
5
 (1st stage) Driver Airbag High
 5
 -
6
 (1st stage) Driver Airbag Low
 6
 -
7
 (2nd stage) Passenger Airbag Low
 7
 -
8
 (2nd stage) Passenger Airbag High
 8
 -
9
 (2nd stage) Driver Airbag High
 9
 Curtain Airbag [Driver] Low
10
 (2nd stage) Driver Airbag Low
 10
 Curtain Airbag [Driver] High
11
 -
 11
 Curtain Airbag [Passenger] High
12
 -
 12
 Curtain Airbag [Passenger] Low
13
 Ignition
 13
 Side Airbag [Front-Passenger] Low
14
 K-Line Diagnostic
 14
 Side Airbag [Front-Passenger] High
15
 -
 15
 Side Airbag [Front-Driver] High
16
 -
 16
 Side Airbag [Front-Driver] Low
17
 Crash Output
 17
 Side Impact Sensor [Rear-Passenger] Feed
18
 Telltale Lamp
 18
 Side Impact Sensor [Rear-Passenger] Return
19
 -
 19
 Side Impact Sensor [Rear-Driver] Feed
20
 Front Impact Sensor [Passenger] Return
 20
 Side Impact Sensor [Rear-Driver] Return
21
 Front Impact Sensor [Passenger] Feed
 21
 -
22
 Front Impact Sensor [Driver] Return
 22
 -
23
 Front Impact Sensor [Driver] Feed
 23
 WCS
24
 -
 24
 -
25
 Side Impact Sensor [Front-Passenger] Feed
26
 Side Impact Sensor [Front-Passenger] Return
27
 Side Impact Sensor [Front-Driver] Feed
28
 Side Impact Sensor [Front-Driver] Return
29
 -
30
 Seat Track Position Sensor [Driver]
31
 Passenger Buckle Sensor
32
 Driver Buckle Sensor

Diagnostic Trouble Codes (DTC)
DTC
 Fault Description
 Remark
B1101
 Battery voltage high
 　
B1102
 Battery voltage low
 　
B1322
 WCS(Weight Classification System)ECU Defect
 　
B1324
 WCS(Weight Classification System)Communication Error
 　
B1325
 WCS(Weight Classification System)Wrong ID
 　
B1328
 FIS(Front Impact Sensor)-Driver defect
 　
B1329
 FIS(Front Impact Sensor)-Driver communication error
 　
B1333
 FIS(Front Impact Sensor)-Passenger defect
 　
B1334
 FIS(Front Impact Sensor)-Passenger communication error
 　
B1346
 Driver airbag resistance too High (1st stage)
 　
B1347
 Driver airbag resistance too Low (1st stage)
 　
B1348
 Driver airbag resistance circuit short to Ground (1st stage)
 　
B1349
 Driver airbag resistance circuit short to Battery (1st stage)
 　
B1352
 Passenger airbag resistance too High (1st stage)
 　
B1353
 Passenger airbag resistance too Low (1st stage)
 　
B1354
 Passenger airbag resistance circuit short to Ground (1st stage)
 　
B1355
 Passenger airbag resistance circuit short to Battery (1st stage)
 　
B1361
 Pretensioner front-Driver resistance too High
 　
B1362
 Pretensioner front-Driver resistance too Low
 　
B1363
 Pretensioner front-Driver resistance circuit short to Ground
 　
B1364
 Pretensioner front-Driver resistance circuit short to Battery
 　
B1367
 Pretensioner front-Passenger resistance too High
 　
B1368
 Pretensioner front-Passenger resistance too Low
 　
B1369
 Pretensioner front-Passenger resistance circuit short to Ground
 　
B1370
 Pretensioner front-Passenger resistance circuit short to Battery
 　
B1371
 STPS(Seat Track Position Sensor)-Driver instability
 　
B1378
 Side airbag front-Driver resistance too High
 　
B1379
 Side airbag front-Driver resistance too Low
 　
B1380
 Side airbag front-Driver resistance circuit short to Ground
 　
B1381
 Side airbag front-Driver resistance circuit short to Battery
 　
B1382
 Side airbag front-Passenger resistance too High
 　
B1383
 Side airbag front-Passenger resistance too Low
 　
B1384
 Side airbag front-Passenger resistance circuit short to Ground
 　
B1385
 Side airbag front-Passenger resistance circuit short to Battery
 　
B1387
 STPS(Seat Track Position Sensor)-Driver short or short to Ground
 　
B1388
 STPS(Seat Track Position Sensor)-Driver open or short to Battery
 　
B1389
 STPS(Seat Track Position Sensor)-Driver defect
 　
B1395
 Firing loops interconnection fault
 　
B1400
 SIS(Side Impact Sensor)front-Driver defect
 　
B1403
 SIS(Side Impact Sensor)front-Passenger defect
 　
B1409
 SIS(Side Impact Sensor)front-Driver communication error
 　
B1410
 SIS(Side Impact Sensor)front-Passenger communication error
 　
B1412
 SIS(Side Impact Sensor)rear-Driver communication error
 　
B1413
 SIS(Side Impact Sensor)rear-Passenger communication error
 　
B1418
 SIS(Side Impact Sensor)rear-Driver defect
 　
B1419
 SIS(Side Impact Sensor)rear-Passenger defect
 　
B1473
 Inflatable curtain airbag front-Driver resistance too High
 　
B1474
 Inflatable curtain airbag front-Driver resistance too Low
 　
B1475
 Inflatable curtain airbag front-Driver resistance circuit short to Ground
 　
B1476
 Inflatable curtain airbag front-Driver resistance circuit short to Battery
 　
B1477
 Inflatable curtain airbag front-Passenger resistance too High
 　
B1478
 Inflatable curtain airbag front-Passenger resistance too Low
 　
B1479
 Inflatable curtain airbag front-Passenger resistance circuit short to Ground
 　
B1480
 Inflatable curtain airbag front-Passenger resistance circuit short to Battery
 　
B1481
 Driver airbag resistance too High(2nd stage)
 　
B1482
 Driver airbag resistance too Low(2nd stage)
 　
B1483
 Driver airbag resistance circuit short to Ground(2nd stage)
 　
B1484
 Driver airbag resistance circuit short to Battery(2nd stage)
 　
B1485
 Passenger airbag resistance too High(2nd stage)
 　
B1486
 Passenger airbag resistance too Low(2nd stage)
 　
B1487
 Passenger airbag resistance circuit short to Ground(2nd stage)
 　
B1488
 Passenger airbag resistance circuit short to Battery(2nd stage)
 　
B1511
 Buckle Switch Driver open or short to Battery
 　
B1512
 Buckle Switch Driver short or short to Ground
 　
B1513
 Buckle Switch Passenger open or short to Battery
 　
B1514
 Buckle Switch Passenger short or short to Ground
 　
B1515
 Buckle Switch Driver defect
 　
B1516
 Buckle Switch Passenger defect
 　
B1517
 Buckle Switch Driver instability
 　
B1518
 Buckle Switch Passenger instability
 　
B1620
 Internal fault - Replace SRSCM
 　
B1650
 Crash recorded in 1st stage only(Frontal - Replace SRSCM)
 　
B1651
 Crash recorded in front-Driver side airbag(Replace SRSCM)
 　
B1652
 Crash recorded in front-Passenger side airbag(Replace SRSCM)
 　
B1655
 Crash recorded (Side - Replace SRSCM)
 　
B1657
 Crash recorded in Belt pretensioner only
 　
B1658
 Belt pretensioner 6 times deployment
 　
B1670
 Crash recorded in full stage(Frontal - Replace SRSCM)
 　
B2500
 Warning lamp Failure
 　
B2502
 Passenger airbag Telltale lamp Failure
