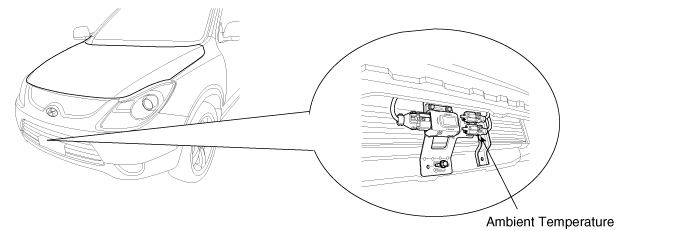

The ambient temperature
sensor located at the center stay of the condensor detects ambient air
temperature. It is joined to AQS sensor as one boby. It is a negative type
thermistor whose resistance is inversely proportional to temperature. Its
output is used for sensor fail-safe, temperature regulation door lock,
blower motor level control, mix mode control and in-car humidity
control
The ECM sets DTC B1238
if there is an open circuit in ambient temp sensor signal harness or the
measured voltage value of the sensor is more than the threshold
value(4.9V)
Item
|
Detecting
Condition
|
Possible Cause
|
DTC
Strategy
|
|
•
|
Open Circuit in
harness |
•
|
Faulty ambient
temp.sensor |
•
|
Faulty A/C Control
Unit | |
Threshold
value
|
|
Detecting
time
|
|
FAIL
SAFE
|
•
|
Control with the value of
20°C | |
※ Resistance value of
ambient temp.sensor as a function of temperature.
Temperature(°C)
|
Resistance(kΩ)
|
Temperature(°C)
|
Resistance(kΩ)
|
-20
|
271.4
|
50
|
11
|
0
|
95.1
|
80
|
3.8
|
25
|
30
|
|
|

1. |

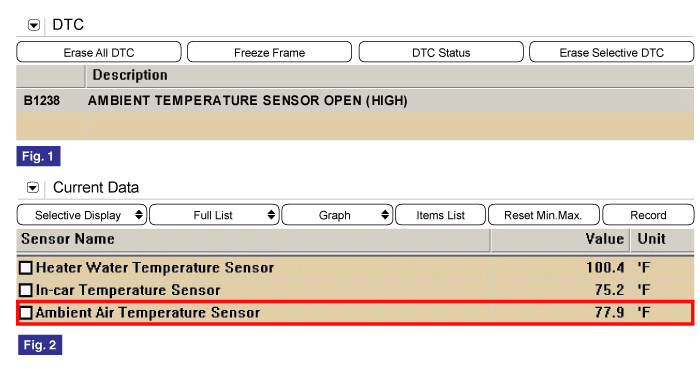

Connect scantool to Data Link
Connector(DLC). |
2. |
Warm up the engine to normal operating
temperature. |
3. |
Monitor DTC(Diagnostics Trouble Code) on the
scantool.

|
4. |
Is the same DTC displayed again?

|
▶ Go to "
Inspection/Repair " procedure .
|

|
▶ Fault is
intermittent caused by poor contact in the sensor's and/or
A/C-ECM connector or was repaired and A/C-ECM memory was not
cleared. Thoroughly check connectors for looseness,
poorconnection, bending, corrosion, contamination,
deterioration, or damage. Repair or replace as necessary and
go to "Verification of vehicle Repair"
procedure.
|
|
1. |
Many malfunctions in the electrical system are
caused by poor harness and terminals. Faults can also be caused by
interference from other electrical systems, and mechanical or
chemical damage. |
2. |
Thoroughly check connectors for looseness,
poor connection, bending, corrosion, contamination, deterioration,or
damage. |
3. |
Has a problem been found?

|
▶ Repair as
necessary and go to "Verification of Vehicle Repair"
procedure
|

|
▶ Go to
"Signal circuit Open Inspection"
procedure.
|
|

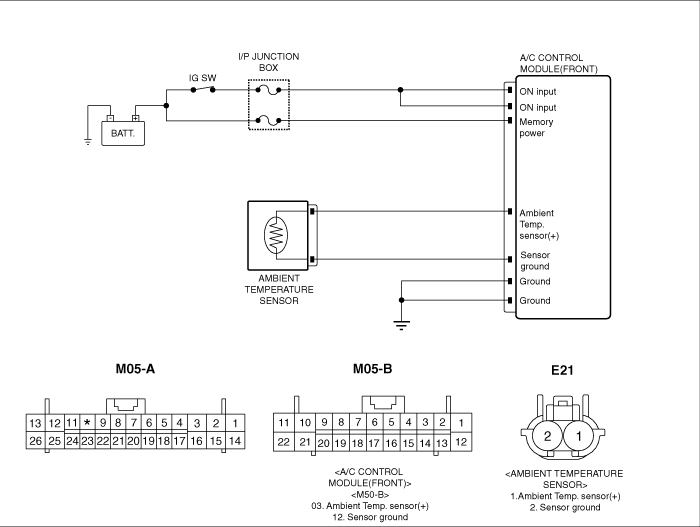

Signal Circuit Open
Inspection |
2. |
A/C-ECU, ambient sensor :
Disconnect. |
3. |
Measure resistance between Signal(+) terminal
of ambient sensor harness connector and Signal(+) terminal of
A/C-ECU harness connector.
|
4. |
Is "resistance" display near the specified
value?

|
▶ Go to
"Sensor ground circuit Open Inspection "
procedure.
|

|
▶ Check for
open in harness. ▶ Repair as
necessary and then go to "Verification of Vehicle Repair"
procedure.
|
|
Signal Ground Circuit Open Inspection
2. |
A/C-ECU, ambient sensor :
Disconnect. |
3. |
Measure resistance between Sensor ground(-)
terminal of ambient sensor harness connector and Sensor ground(-)
terminal of A/C-ECU harness connector.
|
4. |
Is "resistance" display near the specified
value?

|
▶ Go to "
Component inspection " procedure .
|

|
▶ Check for
open in harness. ▶ Repair as
necessary and then go to "Verification of Vehicle Repair"
procedure.
|
|
2. |
A/C-ECU, ambient sensor :
Connect. |
3. |
Measure resistance between Signal(+) terminal
of ambient sensor harness connector and Sensor ground terminal of
ambient sensor harness connector .(Component side)
Specification
: Refer the specifications in
fig.1
|
Temperature(°C)
|
Resistance(kΩ)
|
Temperature(°C)
|
Resistance(kΩ)
|
-20
|
271.4
|
50
|
11
|
0
|
95.1
|
80
|
3.8
|
25
|
30
|
|
|
※ Resistance value of ambient temp.sensor as a
function of temperature. |
4. |
Is "resistance" display near the specified
value?

|
▶ Go to
"Check A/C-ECU" procedure.
|

|
▶
Substitute with a known-good ambient sensor and check for
proper operation. If the problem is corrected, replace ambient
sensor and then go to "Verification of Vehicle Repair"
procedure.
|
|
Check A/C-ECU
2. |
A/C-ECU : Connect, ambient sensor :
Disconnect. |
3. |
Ignition "ON"(ENGINE
"OFF"). |
4. |
Measure voltage between Signal(+) terminal of
ambient sensor harness connector and and chassis ground .(Component
side)
Specification
: approx. 5V
| |
5. |
Is "voltage" display near the specified
value?

|
▶ Check
connectors for looseness, poor connection, bending, corrosion,
contamination, deterioration, or damage. Repair or replace as
necessary and then go to "Verification of Vehicle Repair"
procedure.
|

|
▶
Substitute with a known-good A/C-ECU and check for proper
operation. If the problem is corrected, replace A/C-ECU and
then go to "Verification of Vehicle Repair"
procedure.
|
|
Verification Of Vehicle
Repair |
After a repair, it is
essential to verifying that the fault has been corrected.
1. |
Connect scan tool and select "Diagnostic
Trouble Codes(DTCs)" mode. |
2. |
Using scantool, Clear
DTC. |
3. |
Operate the vehicle within DTC Enable
conditions in General information. |
4. |
Are any DTCs present?

|
▶ Go to the
applicable troubleshooting procedure.
|

|
▶ System is
performing to specification at this
time.
|
|
