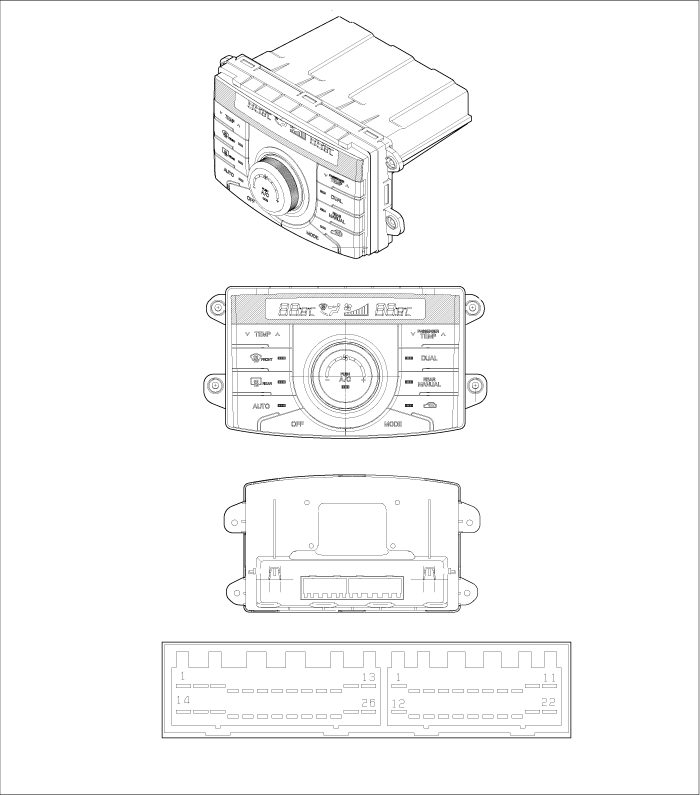

Components

Connector	Pin	Function	Connector	Pin	Function
Connector (A)	1	TAIL LAMP	Connector (B)	1	SENSOR REF (+5V)
	2	BATTERY		2	AQS SIGNAL
	3	A/C OUTPUT		3	AMBIENT SENSOR (+)
	4	A/C SELECT SIGNAL		4	HUMIDITY SENSOR (+)
	5	-		5	INCAR SENSOR (+)
	6	K-LINE		6	EVAPORATOR SENSOR (+)
	7	HTD		7	WATER TEMP SENSOR (+)
	8	REAR DEFOG SW		8	SPEED SIGNAL
	9	REAR C-LINE		9	FET (G)
	10	-		10	FET (D)
	11	-		11	BLOWER MOTOR (+)
	12	IGN2		12	SENSOR GND
	13	IGN2		13	TEMP ACTUATOR DR (COOL)
	14	RHEOSTAT		14	TEMP ACTUATOR DR (WARM)
	15	INCAR MOTOR(+)		15	DR PHOTO (-)
	16	TEMP ATUATOR PS (COOL)		16	PS PHOTO (-)
	17	TEMP ATUATOR PS (WARM)		17	INCAR MTOR (-)
	18	TEMP ATUATOR PS F/B		18	TEMP ACTUATOR DR F/B
	19	MODE ACTUATOR (VENT)		19	BLOWER ON SIGNAL
	20	MODE ACTUATOR (DEF)		20	PTC ON SIGNAL
	21	MODE ACTUATOR F/B		21	PTC RLY 2
	22	INTAKE ACTUATOR (FRE)		22	PTC RL 3
	23	INTAKE ACTUATOR (REC)
	24	INTAKE ACTUATOR F/B
	25	GND
	26	GND
