Suspension System > Tire Pressure Monitoring System

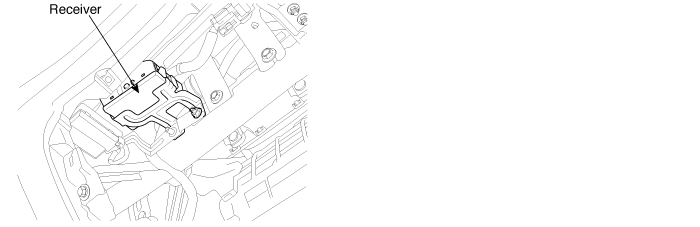

Component Location

General Description

TPMS Receiver

TPM Receiver is integrated with the TPM module installed in the center console (behind the audio). The operating battery of TPM module is supplied from the vehicle battery.

The LOW-LINE TPMS Receiver unit’s MCU and RF receiver circuits are active while the vehicle’s ignition circuit is energized. It continuously monitors for RF broadcasts from nearby WE units.

The TPMS Receiver unit has nonvolatile memory in which the ID codes of the WE units fitted to that particular vehicle are stored.

When the TPMS Receiver unit receives an information broadcast, it checks to see if the ID code contained within that broadcast matches one of the ID codes stored within its nonvolatile memory. If this is the case, the TPMS Receiver applies the information contained within that broadcast to the TPMS Warning Algorithm.

This algorithm evaluates the pressure and temperature of each tire for changes over time, and is responsible for making the decision to alert the driver to a potentially dangerous tire inflation condition via a visible ‘TREAD’ indicator.

In addition to processing data from the WE units, the TPMS Receiver is also capable of self-diagnosis of its circuitry and operating condition.

DTC Description

This DTC indicates that the receiver has a problem reading or writing to EEPROM. The most likely cause is TPMS Receiver failure.

DTC Detecting Condition

Item

Detecting Condition

Possible cause

DTC strategy

•	Check Receiver module

•	Transient over voltage due to vehicle fault (fault would typically recover)

•	Faulty TPMS Receiver

Enable conditions

•

IGN ON

Threshold
value

case1

•	Checksum in EEPROM sensor ID block fails.

case2

•	Checksum in EEPROM part configuration block fails.

Diagnosis time

•	Within 3 sec. after IGN ON

Component Inspection

1.	Connect 'TPMS exciter' or scantool to Data Link Connector(DLC).

2.	Clear DTC.

3.	IG OFF & IG ON.

4.	Execute "Diagnostic Trouble Codes(DTCs)" mode.

Is 'C1661' present ?

	▶ Substitute with a known-good TPMS Receiver module and check for proper operation. ▶ If the problem is corrected, replace TPMS Receiver module and go to "Verification of vehicle Repair" procedure.
	▶ TPMS receiver complete successful Auto-location. ▶ System is OK.

Verification of Vehicle Repair

After a repair, it is essential to verify that the fault has been corrected.

1.	Connect TPMS exciter or scantool and select "Diagnostic Trouble Codes(DTCs)" mode

2.	Using a TPMS exciter or scantool, Clear DTC.

3.	Operate the vehicle within DTC Enable conditions in General information.

Are any DTCs present ?

	▶ Go to the applicable troubleshooting procedure.
	▶ System performing to specification at this time.
