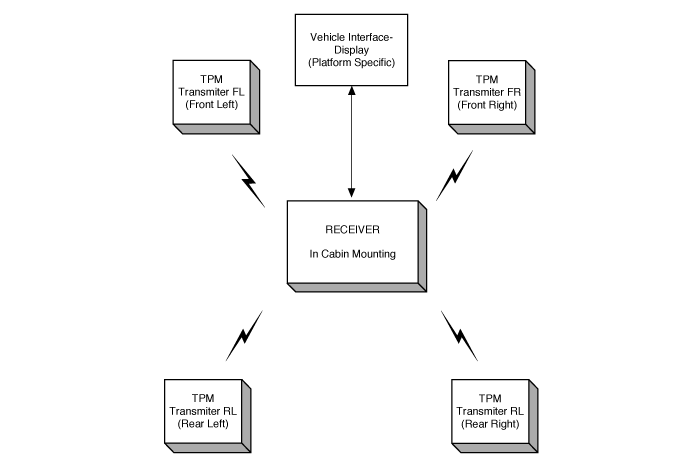

SCHEMATIC DIAGRAM

1	2	3	4	5	6	7	8
9	10	11	12	13	14	15	16

NO	PIN-OUT ASSIGNMENT	NO	PIN-OUT ASSIGNMENT
1	Battery	9	GROUND
2	IGN	10	-
3	-	11	TREAD
4	K-LINE	12	TPMS Warning
5	-	13	-
6	-	14	-
7	-	15	-
8	-	16	-

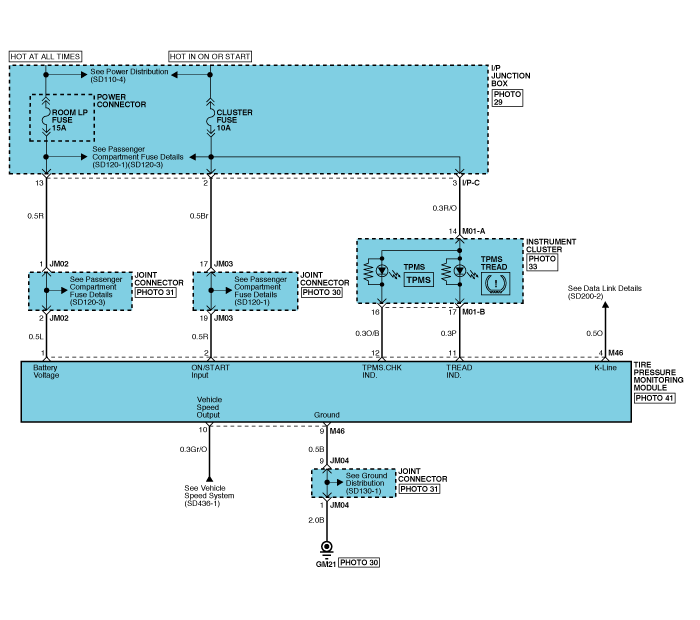

Circuit Diagram
