VERACRUZ(EN) >2008 > G 3.8 DOHC > Brake System > ESP(Electronic Stability Program) System > Yaw-rate and Lateral G Sensor>Description and Operation
DESCRIPTION
1.
The yaw-rate & lateral G sensor is applied for the ESC system.
2.
The yaw-rate is the angular velocity, when a vehicle turns a corner, and the lateral G is the acceleration to move a vehicle out of the way when cornering.
3.
The sensor is located in the front passenger seat lower floor on vehicle.

specifications
Description
 Specification
 Remarks
Operating voltage
 8 ~ 17V
Current consumption
 Max. 140mA
Operating temperature
 -40 ~ 85°C
Yaw-rate sensor
 Measurement range
 -75 ~ 75°/sec
Frequency response
 18 ~ 22Hz
Lateral G sensor
 Measurement range
 -14.715 ~ +14.715m/s²
Frequency response
 50Hz

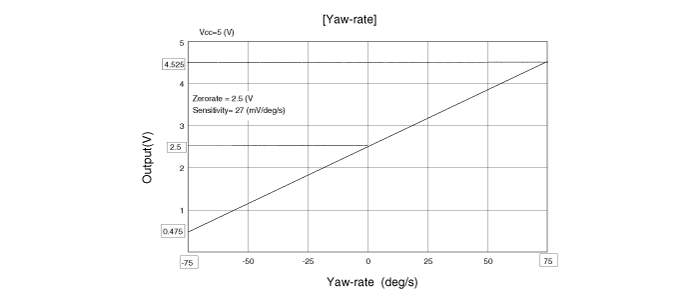

output characteristic

external diagram
