Components

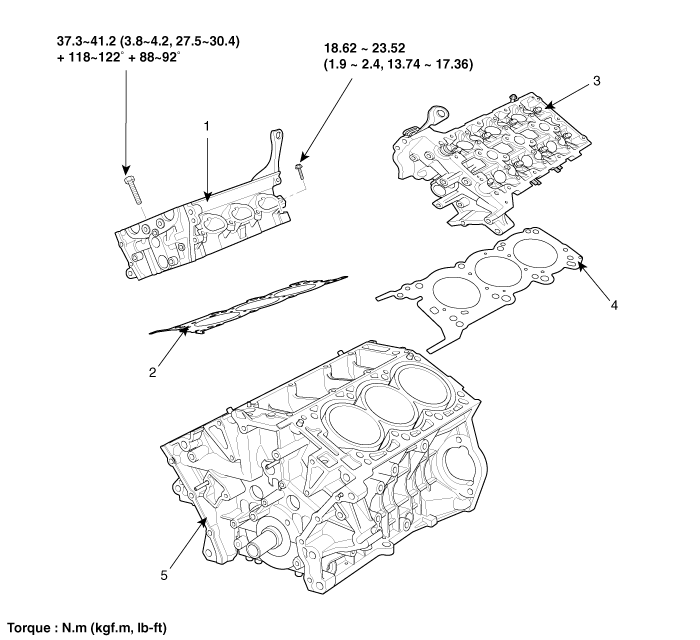

1. RH cylinder head 2. RH cylinder head gasket 3. LH cylinder head

4. LH cylinder head gasket 5. Cylinder block

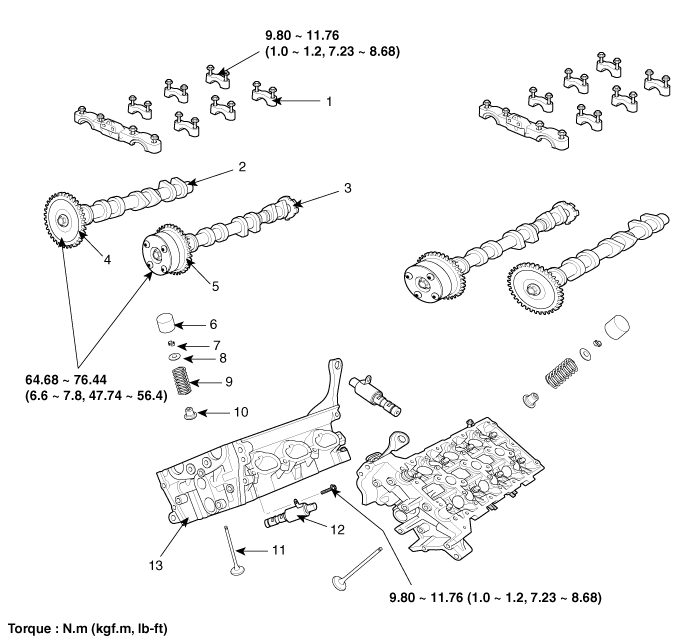

1. Camshaft bearing cap 2. Exhaust camshaft 3. Intake camshaft 4. Exhaust camshaft sprocket 5. CVVT assembly

6. MLA 7. Retainer lock 8. Retainer 9. Valve spring 10. Valve stem seal

11. Valve 12. OCV 13. Cylinder head
