VERACRUZ(EN) >2007 > G 3.8 DOHC > Suspension System > Tire Pressure Monitoring System>Schematic Diagrams

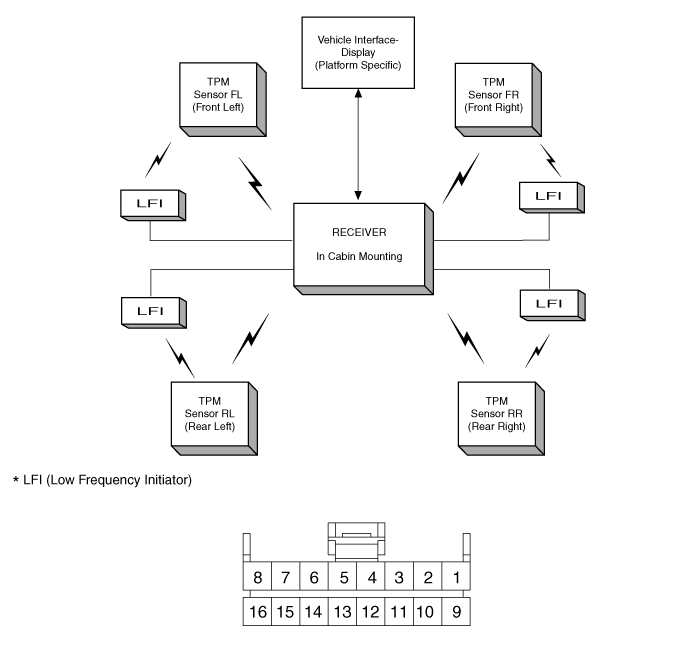

SCHEMATIC DIAGRAM

NO
 PIN-OUT ASSIGNMENT
 NO
 PIN-OUT ASSIGNMENT
1
 Battery
 9
 GROUND
2
 IGN
 10
 SPEED SIG
3
 -
 11
 TREAD
4
 K-LINE
 12
 TPMS Warning
5
 FR-LFI
 13
 FR Lamp
6
 FL-LFI
 14
 FL Lamp
7
 RR-LFI
 15
 RR Lamp
8
 RL-LFI
 16
 RL Lamp

CIRCUIT DIAGRAM
