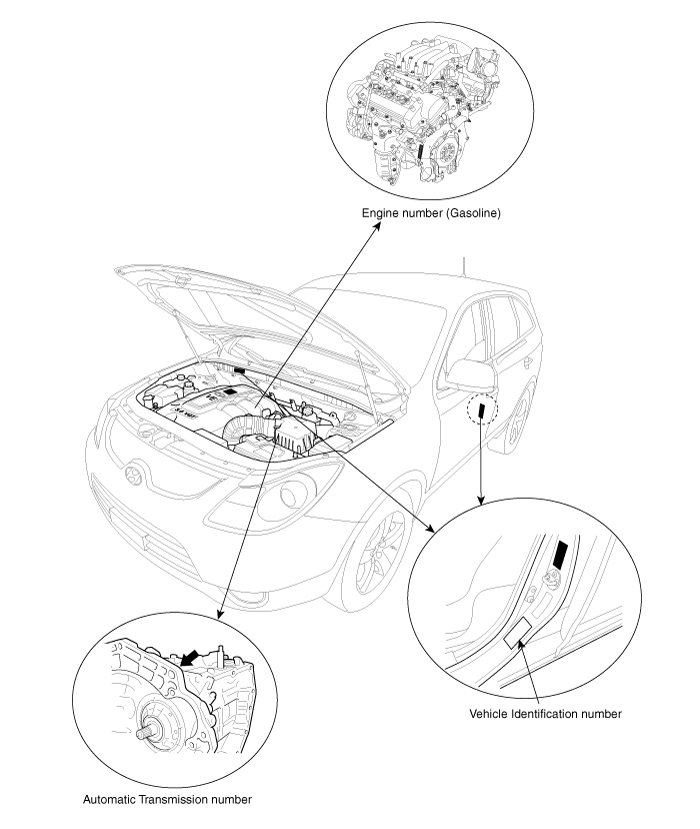

IDENTIFICATION NUMBER LOCATIONS

1.	Geographic zone - K : Korea

2.	Manufacturer - M : Hyundai motor company

3.	Vehicle type - H : Passenger

4.	Vehicle line - N : VERACRUZ

5.	Model & Series - S : STANDAD (L) - T : DELUXE (GL) - U : SUPER DELUXE (GLS) - V : GRAND SALON (GDS) - Z : SUPER GRAND SALON (HGS)

6.	Body type - 8 : WAGON

7.	Restraint system - 0 : Both side - None - 1 : Both side - Active belt - 2 : Both side - Passive belt

8.	Engine type - C : Gasoline engine 3.8

9.	Check digit - Check digit : 0 ~ 9, x - P : Left hand driver - R : Right hand driver

10.	Production year - 6 : 2006, 7 : 2007, 8 : 2008

11.	Plant of production - U : Ulsan (korea)

12.	Vehicle production sequence number - 000001 ~ 999999

CODE	COLOR
EB	Enbony black
3M	Vanilla white
5Q	Blue onyx
5J	Superior red
6F	Blue titanium
2H	Natural khaki
2Z	Black pearl
5T	Satin beige
AD	Dark bronze
X2	Sleek silver

-	G : Gasoline

-	6 : 4 cycle 6 cylinder

-	D : Lamda engine

-	A : 3778cc (Gasoline)

-	6 : 2006, 7 : 2007, 8 : 2008

-	000001 ~ 999999

1.	Production year - 6 : 2006, 7 : 2007, 8 : 2008

2.	Production month - A : January - B : February - C : March - D : April - E : May - F : June - G : July - H : August - I : September - J : October - K : November - L : December

3.	Factory code

4.	Transaxle production sequence number - 000001 ~ 999999

5.

Spare

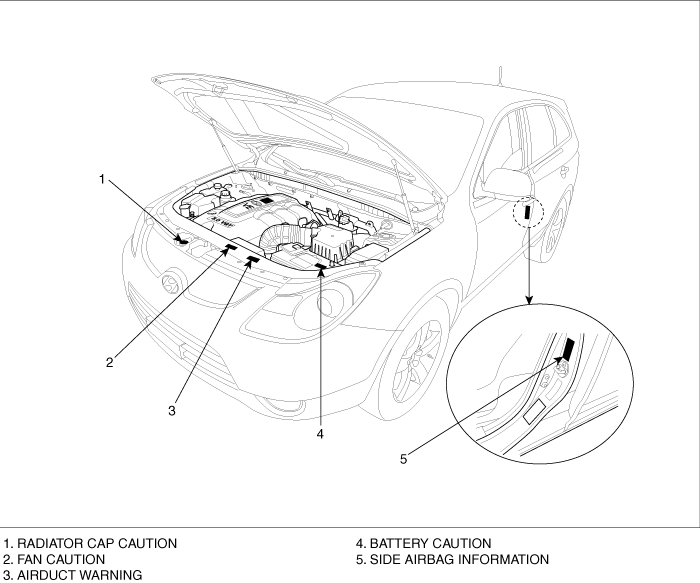

SRS VEHICLE This car is equipped with a supplemental restraint system. To provide continedreliablity, certain elements of the supplemental restraint system shallbe serviced or replaced by authorized dealer ten years after vehicle label.For further information. see owner's manual. SIDE AIR BAG This car is equipped with a side airbag system. To provide continued reliability,certain elements of the side airbag system shall be serviced or vehiclemanufacture date shown on certification label. For further information seeowner's manual.

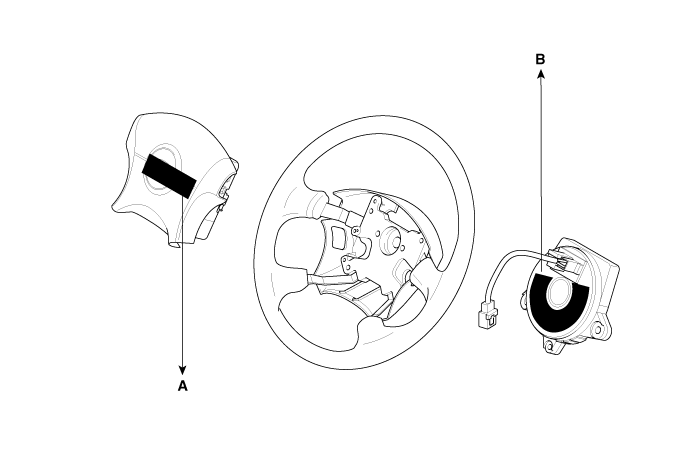

A. DRIVE AIR BAG (DAB) CAUTION Caution Don't open, remove or transfer to another vehicle. Risk of malfunction and bodily injury! This unit is to be installed and/or dismantled by trained personnel only. This item contains an explosive device.

B. CAUTION AIR BAG : Handing is limited to trained personnel. To be used only in prescribed vehicles. If not propely installed, device may become a dangerous projectile. See serivce manual instruction

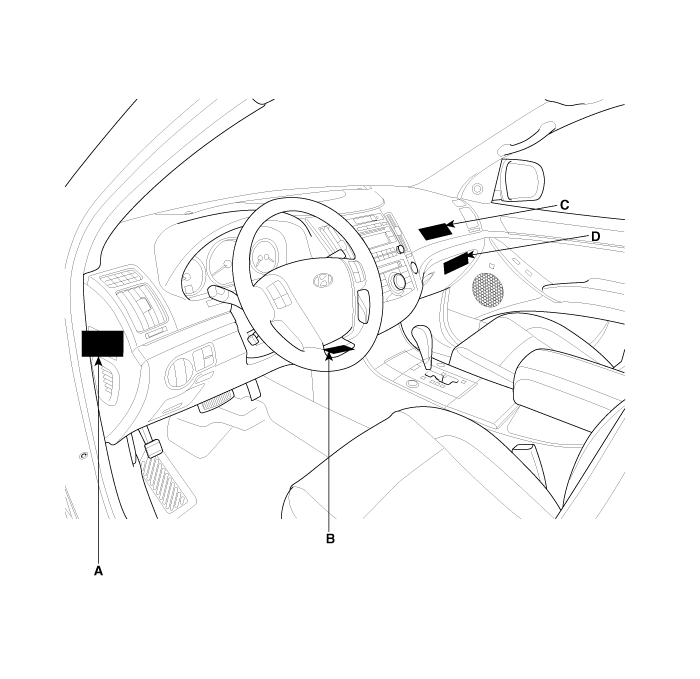

A : WARNING SEE OWNER'S MANUAL. This car is equipped a side airbag for each front seat. • Do not use any accessory seat covers. • Use of other seat covers could reduce the effect of the system. • Do not install any accessories on the side or near the side airbag. • Do not use excessive force on the side of the seat. • For further information, see the owner's manual.

B : CAUTION AIRBAG ESPE UNIT Detach connector before unmounting. Assemble strictly according to manual instructions.

C : PASSENGER MODULE CAUTION CAUTION Don't open, remove or transfer to another vehicle. Risk of malfunction and bodily injury! This unit is to be installed and/or dismantled by trained personnel only. This item contains an explosive device.

D : SUPPLEMENTAL RESTRAINT SYSTEM (AIRBAG) INFORMATION • The airbag is a Supplement Restraint System (SRS). You must always wear the seat belts. • The airbag system condition is normal when the "SRS" lamp in the cluster illuminates for approximately 6 seconds after the ignition key is turned on and then goes off. • If any of the following condition occur, the system must be serviced. • "SRS" lamp does not light up when the key is turned on. • "SRS" lamp stays lit or flashes continuously. • The airbag has inflated. • The airbag system must be inspected by an authorized dealer ten years after the vehicle manufacture date shown on the certification label, located on left front door opening area. WARNING Failure to the above instructions may result in injury to you or other occupants in the vehicle • See the "SRS" section in Owner's Manual for more information about airbags.

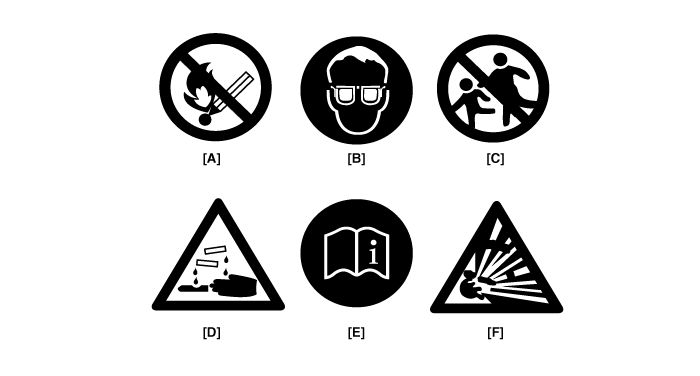

A. Keep lighted cigarettes and all other flames or sparks away from the battery.

B. Wear eye protection when charging or working near a battery. Always provide ventilation when working in an enclosed space. • When lifting a plastic-cased battery, excesive pressure on acid to leak resulting in personal injury. Lift with a battery carrier or with your hands on opposite corners. • Never attempt to change the battery when the battery cables are connected. • The electrical ignition system works with high voltage. Never touch these components with the engine running or the ignition switched on.

C. Keep batteries out of the reach of children because batteries contain highly corrosive SULFURIC ACID. Do not allow battery acid to contact your skin, eyes, clothing or paint finish.

D. If any electrolyte gets into your eyes, flush your eyes with clean water for at least 15 minutes and get immediate medical attention. If possible, continue to apply water with a sponge or cloth until medical attention is received. If electrolyte gets on your skin, throughly wash the contacted area. If you feel a pain or a burning sensation, get medical attention immediately.

E. Always read the following instructions carefully when handing a battery.

F. Hydrogen, which is a highly combustible gas, is always presents in battery cells and may explode if ignited.

Battery Itself

• Batteries should be stored in cool, dry (27 degrees Celsius) places and out of direct sunlight. • MF batteries are tightly sealed to prevent acid leakage. However, tilting the battery to an angle of 45 degrees can cause acid to leak through the vents on the sides. Therefore, batteries should always be stored in their upright positions. Prevent placing any aqueous or solid (i.e. conductors) bodies on top of the battery. • It is extremely dangerous to use tools, such as hammers, on the battery terminals when connecting cables to the mounted battery.

Battery on Vehicle

• When storing the vehicle for long periods of time, make sure to remove the memory fuse at junction box to prevent natural discharging. • Also, run the engine for battery charging within 1 month if the memory fuse wasn't removed from the start of vehicle storing. If the memory fuse was removed, run the engine for battery charging within 3 months from the start of vehicle storing.

When heavy rear components such as suspension, fuel tank, spare tire, tailgate and trunk lid are to be removed, place additional weight in the luggage area before hoisting. When substatial weight is removed from the rear of the vehicle, the center of gravity may change and can cause the vehicle to tip forward on the hoist.

• Since each tire/wheel assembly weights approximately 30lbs (14kg), placing the front wheels in the luggage area can assist with the weight distribution. • Use the same support points to support the vehicle on safety stands.

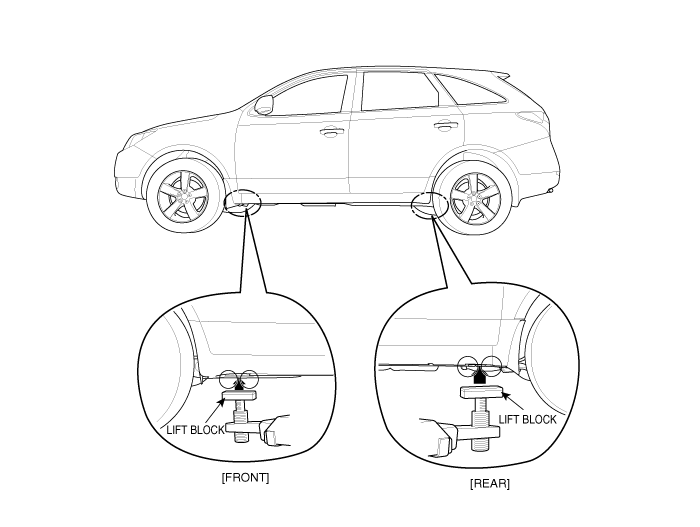

1.	Place the lift blocks under the support points as shown in the illustration.

2.	Raise the hoist a few inches (centimeters) and rock the vehicle to be sure it is firmly supported.

3.	Raise the hoist to full height to inspect the lift points for secure support.

•	Release the parking brake.

•	Shift the transmission to neutral

•	Release the parking brake.

•	Start the engine.

•	Shift to [D] position, then [N] position.

•

Turn off the engine. • Improper towing preparation will damage the transmission. Follow the above procedure exactly. If you cannot shift the transmission or start the engine(automatic transmission), your vehicle must be transported on a flatbed. • It is the best to tow vehicle no farther than 19miles (30km), and keep the speed below 30mph (50km/h). • Trying to lift or tow your vehicle by the bumpers will cause serious damage. The bumpers are not designed to support the vehicle's weight. Front : Rear :

Bolt niminal diameter (mm)	Pich (mm)	Torque Nm (kg.cm, lb.ft)
		Head Mark 4	Head Mark 7
M5	0.8	3 ~ 4 (30 ~ 40, 2.2 ~ 2.9)	5 ~ 6 (50 ~ 60, 3.6 ~ 4.3)
M6	1.0	5 ~ 6 (50 ~ 50, 3.6 ~ 4.3)	9 ~ 11 (90 ~ 110, 6.5 ~ 8.0)
M8	1.25	12 ~ 15 (120 ~ 150, 9 ~ 11)	20 ~ 25 (200 ~ 250, 14.5 ~ 18.0 )
M10	1.25	25 ~ 30 (250 ~ 300, 18 ~ 22)	30 ~ 50 (300 ~ 500, 22 ~ 36)
M12	1.25	35 ~ 45 (350 ~ 450, 25 ~ 33)	60 ~ 80 (600 ~ 800, 43 ~ 58)
M14	1.5	75 ~ 85 (750 ~ 850, 54 ~ 61)	120 ~ 140 (1,200 ~ 1,400, 85 ~ 100)
M16	1.5	110 ~ 130 (1,100 ~ 1,300, 80 ~ 94)	180 ~ 210 (1,800 ~ 2,100, 130 ~ 150)
M18	1.5	160 ~ 180 (1,600 ~ 1,800, 116 ~ 130)	260 ~ 300 (2,600 ~ 3,000, 190 ~ 215)
M20	1.5	220 ~ 250 (2,200 ~ 2,500, 160 ~ 180)	360 ~ 420 (3,600 ~ 4,200, 260 ~ 300)
M22	1.5	290 ~ 330 (2,900 ~ 3,300, 210 ~ 240)	480 ~ 550 (4,800 ~ 5,500, 350 ~ 400)
M24	1.5	360 ~ 420 (3,600 ~ 4,200, 260 ~ 300)	610 ~ 700 (6,100 ~ 7,000, 440 ~ 505)

1. The torques shown in the table are standard values under the following conditions : • Nuts and bolts are made of galvanized steel bar. • Galvanized plain steel washers are inserted. • All nuts, bolts and plain washers are dry. 2. The torques shown in the table are not applicable : • When spring washers, toothed washers and the like are inserted. • If plastic parts are fastened. • If self-tapping screws or self-locking nuts are used. • If threads and surfaces are coated with oil. 3. Reduce the torque values to the indicated percentage of the standard value under the following conditions. • If spring washers are used : 85% • If threads and bearing sufaces are stained with oil : 85%

Parts		OIL & GREASE STANDARD
Engine Oil	Gasoline 3.8 (G6DA)	API SJ or ABOVE, SAE 5W-20
Transaxle	Auto	JWS - 3309
Power Steering		PSF - 3
Breake Steering		DOT 3 or equivalent
Coolant		Ethlyene glycol base for aluminium radiator
Transaxle linkage, parking breake cable mechanism, hood, door latch, seat adjuster, tailgate latch, door hinges, tailgate hinge		Multipurpose grease NIGL grade #2

Always use Genuine Hyundai parts and recommedended fluid. Using any other type of parts and fluid can cause serious damaged if the vehicle.RECOMMENDED LUBRICANTS

Description		G6DA
Engine oil	Oil pan	5.5 (5.81, 4.84)
	Oil filter	0.4 (0.42, 0.35)
	Total	6.4 (6.76, 5.63)
Cooling system		8.6 (9.09, 7.57)
Automatic transaxle		10.9 (11.52, 9.59)
Power steering		1.0 (1.06, 0.88)

For best performance and maximum protection of all types of operation, select only those lubricants which : 1. Satisfy the requirements of the API classification. 2. Have the proper SAE grade number for expected ambient temperature range. Lubricants which do not have both an SAE grade number and an API service classification on the container should not be used.

The support rod must be inserted into the hole near the edge of the hood whenever you inspect the engine compartment to prevent the hood from falling and causing possible injury. Make sure that the support rod has been released prior to closing the hood. Always check to be sure the hood is firmly latched before driving the vehicle.

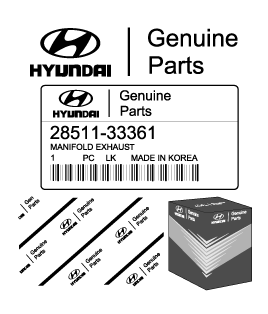

1.	Inspection of parts Each part, when removed, should be carefulley on spected for malfunction, deformation, damage, and other problems.

2.	Arrangement of parts All disassembled parts should be carefully arranged for effective reassembly. Be sure to separate and correctly identify the parts to be repllaced from those that will be used again.

3.	Cleaning parts for reuse All parts to be used again should be carefully and thoroughly cleaned by an appropriate method.

1.

Oil seals

2.

Gaskets

3.

O-rings

4.	Lock washers

5.	Cotter pins (split pins)

6.	Plastic nuts Depending on their location.

7.	Selalant should be applied to gaskets.

8.	Oil should be applied to the moving components of parts.

9.	Specified oil or grease should be applied to the prescribed locations (oil seals, etc) before assembly.

1.	Be sure to disconnect the battery cable from the negative (-) terminal of the battery.

2.	Never pull on the wires when disconnecting connectors.

3.	Locking connectors will click when the connector is secure.

4.	Handle sensors and relays carefully. Be careful not to drop them against other parts.

1.	Basically, all measurements in this manual are taken with a tracking gauge.

2.	When a measuring tape is used, check to be sure there is no elongation, twisting or bending.

3.	For measuring dimensions, both projected dimensioners and actual - measurement dimensions are used in this manual.

1.	These are the dimensions measured when the measurement points are projected from the vehicle's surface, and are the reference dimensions used for used for body alterations.

2.	If the length of the tracking gauge probes is adjustable, measure it by lengthening one of two probes as long as the different value in height of the two surface.

1.	These dimensions indicate the actual linear distance between mesaurement points, and are used as the reference dimensions when a tracking gauge is used for measurement.

2.	First adjust both probes to the same length (A=A') before measurement. Check the probes and gauge itself to make sure there is no free play.

1.	Check the terminal for tightness.

2.	Check terminals and wires for corrosion from battery electrolyte, etc.

3.	Check terminals and wires for open corcuits.

4.	Check wire insulation and coating for damage, cracks and degrading.

5.	Check the conductive parts of terminals for contact with other metallic parts (vehicle body and other parts).

6.	Check grounded parts to verify that there is complete continuity between thier attaching bolt(s) and the vehicle's body.

7.	Check for incorrect wiring.

8.	Check that the wiring is so clamped to the prevent contact with sharp corners of the vehicle body, etc. or hot parts (exhaust manifold, etc.)

9.	Check that the wiring is clamped firmy to provide enough clearance from the fan pulley, fan belt and other rotating or moving parts.

10.	Check that the wiring has a little space so that it can vibrate between fixed and moving parts such as the vehicle body and the engine.

1.

Prior to servicing the electrical system, be sure to turn off the ignition switch and disconnect the battery ground cable. In the course of MFI or ELC system diagnosis, when the battery cable is removed, any diagnostic trouble code retained by the computer will be cleared. There fore, if necessary, record the diagnostic data before removing the battery cable.

2.

Attach the wiring harnesses with clamps so that there is no slack. However, for any harness which passes the engine or other vibrating parts of the vehicle, allow some slack within a range that does not allow the engine vibrations to cause the harness to come into contact with any of the surronding parts and then secure the harness by using a clamp.

3.	If any section of a wiring harness interferes with the edge of a parts, or a corner, wrap the section of the harness with tape or something similar in order to protect if from damage.

4.	When installing any parts, be careful not to pinch or damage any of the wiring harness.

5.	Never throw relays, sensors or electrical parts, or expose them to strong shock.

6.	The electronlic parts used in the computer, relays, etc. are readily damaged by heat. If there is a need for service operations that may cause the temperature to exceed 80°C (176°F), remove the electronic parts before hand.

7.	Loose connectors cause problems. Make sure that the connectors are always securely fastened.

8.	When disconnecting a connector, be sure to grip only the connector, not the wires.

9.	Disconnect connector which have catches by pressing in the direction of the arrows shown the illustration.

10.	Connect connectors which have catches by inserting the connectors until they make a clicking sound.

11.

When using a circuit tester to check continuity or voltage on connector terminals, insert the test probe into the harness side. If the connector is a sealed connector, insert the test probe through the hole in the rubber cap until contacts the terminal, being careful not to damage the insulation of the wires.

12.

To avoid overloading the wiring, take the electrical current load of the optional equipment into consideration, and determine the appropartate wire size. Noeminal size SAE gauge No. Permissible current In engine compartment Other areas 0.3mm² AWG 22 - 5A 0.5mm² AWG 20 7A 13A 0.85mm² AWG 18 9A 17A 1.25mm² AWG 16 12A 22A 2.0mm² AWG 14 16A 30A 3.0mm² AWG 12 21A 40A 5.0mm² AWG 10 31A 54A

If a large amount of unburned gasoline flows into the converter, it may overheat and create a fire hazard. To prevent this observe the following precations and explain them to your customer.

1.	Use only unleaded gasoline.

2.	Do not run the engine while the car is at rest for a long time. Avoid running the engine at fast idle for more than 10minutes and idle speed for more than 20 minutes.

3.	Do not measure engine compression for an extended time. Engine compression tests must be made as rapidly as possible. Remove the fuel pump relay before performing a compression test.

4.	Do not dispose of used catalytic converter together with parts contaminated with gasoline or oil.
