INSPECTION

1.	Disconnect the ignition switch connector and key warning switch connector from under the steering column.

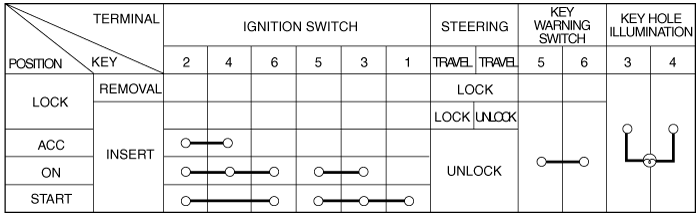

2.	Check for continuity between the terminals.

3.	If continuity is not specified, replace the switch.

REMOVAL

1.	Disconnect the negative (-) battery terminal.

2.	Remove the crash pad lower panel (Refer to the Body group - crash pad).

3.	Remove the steering column cover (Refer to the ST group).

4.	Remove the key warning switch and key illumination lamp (B) after disconnecting the 6P connector(A).

5.	If it is necessary to remove the key lock cylinder (A), Remove the key lock cylinder (A) after pushing lock pin (B) with key ACC.

INSTALLATION

1.	Reassemble the key lock cylinder.

2.	Reassemble the key warning switch and key illumination lamp.

3.	Reassemble the steering column cover.

4.	Reassemble crash pad lower panel.
