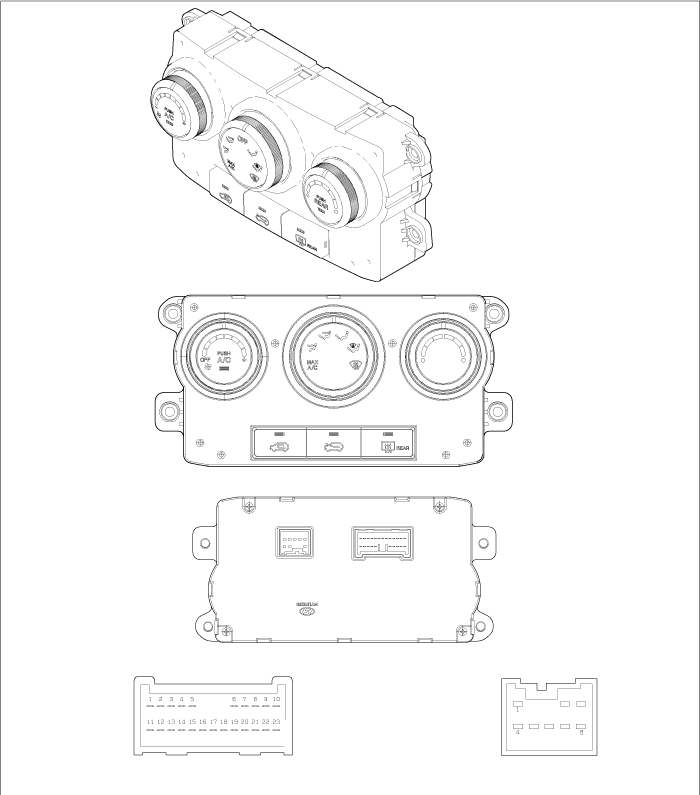

COMPONENT

Connector	Pin	Function	Connector	Pin	Function
Connector (A)	1	BATTERY	Connector (B)	1	MODE ACTUATOR(VENT)
	2	IGN2		2	MODE ACTUATOR(DEF)
	3	-		3	TEMP ACTUATOR(COOL)
	4	SENSOR REF(+5V)		4	TEMP ACTUATOR(WARM)
	5	A/C SELECT SIGNAL		5	INTAKE ACTUATOR(FRE)
	6	A/C OUTPUT(THERMO)		6	INTAKE ACTUATOR(REC)
	7	PTC RELAY2		7	FET(D)-FRONT
	8	PTC RELAY3		8	BLOWER MOTOR(+)
	9	SENSOR GND
	10	GND
	11	-
	12	TAIL LAMP(ILL+)
	13	REAR C-LINE
	14	PTC ON SIGNAL
	15	BLOWER ON SIGNAL TO ECU
	16	MODE ACTUATOR F/B
	17	TEMP ACTUATOR F/B
	18	INTAKE ACTUATOR F/B
	19	HTD
	20	REAR DEFOG SW
	21	EVAPORATOR SENSOR(+)
	22	FET(G)-FRONT
	23	RHEOSTAT(ILL)
