| 2. |
Using the multi-tester, Measure resistance
between terminal "1" and "2" of water temperature
sensor.
[Specification]
Coolant temperature
[°C(°F)]
|
Resistance
(kΩ)
|
-10(14)
|
55.85
|
0(32)
|
32.91
|
10(50)
|
19.99
|
20(68)
|
12.51
|
30(86)
|
8.047
|
40(104)
|
5.311
|
50(122)
|
3.588
|
60(140)
|
2.476
|
70(158)
|
1.742
|
80(176)
|
1.246
|
|
| 3. |
If the measured resistance is not
specification, substitute with a known-good water temperature sensor
and check for proper operation. |
| 4. |
If the problem is corrected, replace the water
temperature sensor.
|
Negative type thermistor that resistance
will rise with lower temperature, and reduce with higher
temperature. | |
| 1. |
Disconnect the negative (-) battery
terminal. |
| 2. |
Remove the extenser cover (A).
|
| 3. |
Remove the crash pad under cover
(A).
|
| 4. |

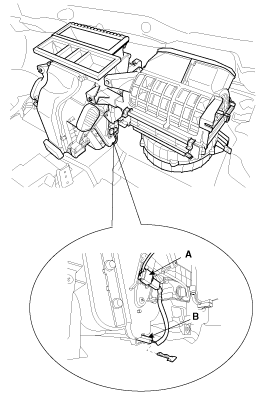

Disconnect the connector (A) of water
temperature sensor(B) and then remove the water temperature sensor
by pulling out.
|
| 5. |
Installation is the reverse order of
removal.
|
Take care that wire of water temperature
sensor is not to be
damaged | | |
